PRODUCT DETAILS
Electric Cylinder Machine Screw With Motor Mount 20T
Electric Cylinder is a device that utilizes a source of power to operate a valve. This source of power can be a human being working a manual gearbox to open or close a valve, or it can be a smart electronic device with sophisticated control and measuring devices.
Product Code
001C000429
Company Name
Joyce Dayton Corp
Country of Manufacture
USA
General Information

Please click on Product Spec and identify the correct Ball Screw Jacks. You may send your Business Enquiry.


Electric Cylinder Machine Screw With Motor Mount 20T Total SKUs (40)
ModelStatic CapacityScrew DiameterThread Pitch/LeadWorm Gear RatioEnd ConditionsAdditional Items DescriptionPrice
ModelStatic CapacityScrew DiameterThread Pitch/LeadWorm Gear RatioEnd ConditionsAdditional Items DescriptionPrice
ECAL82020 ton2.5.25 pitch ACME 2C8:01Male Clevis/Clevis Base(4C)NA
SKU
Each (USD $)
1023DC1101
Call
ECAL82020 ton2.5.25 pitch ACME 2C8:01Male Clevis/Flange Base(4F)NA
1023DC1102
Call
ECAL82020 ton2.5.25 pitch ACME 2C8:01Male Clevis/ Rot.Clevis Base(4R)NA
1023DC1103
Call
ECAL242020 ton2.5.25 pitch ACME 2C24:01Male Clevis/Clevis Base(4C)NA
1023DC1104
Call
ECAL242020 ton2.5.25 pitch ACME 2C24:01Male Clevis/Flange Base(4F)NA
1023DC1105
Call
ECAL242020 ton2.5.25 pitch ACME 2C24:01Male Clevis/ Rot.Clevis Base(4R)NA
1023DC1106
Call
ECAM82020 ton2.5.5 pitch ACME 2C8:01Male Clevis/Clevis Base(4C)NA
1023DC1107
Call
ECAM82020 ton2.5.5 pitch ACME 2C8:01Male Clevis/Flange Base(4F)NA
1023DC1108
Call
ECAM82020 ton2.5.5 pitch ACME 2C8:01Male Clevis/ Rot.Clevis Base(4R)NA
1023DC1109
Call
ECAM242020 ton2.5.5 pitch ACME 2C24:01Male Clevis/Clevis Base(4C)NA
1023DC1110
Call

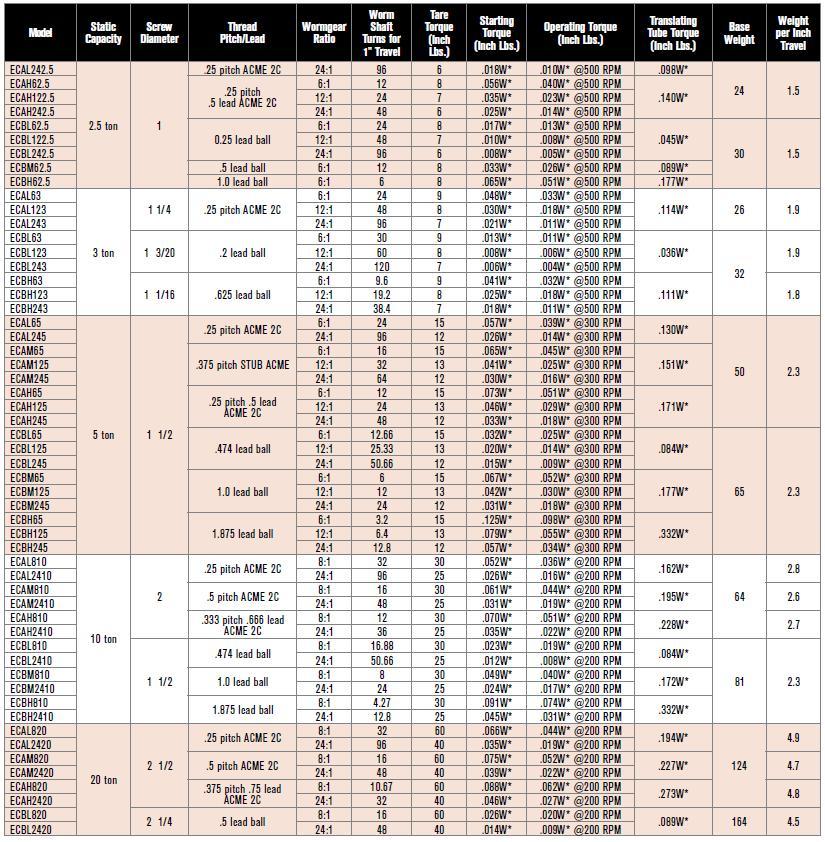

Product DescriptionElectric Cylinder SpecificationWorksheet

Electric Cylinder operates as an input shaft (worm) shaft rotates a wormgear, which in turn rotates the lifting screw. As the lifting screw rotates, it forces the lifting nut (fixed to the cylinder tube) to translate, thus extending or retracting the cylinder tube. For proper operation, the load being lifted must be restrained from rotation.

We offer Electric Cylinders in several models including:

  • Motor Mount
