PRODUCT DETAILS
MULTIPURPOSE ACTUATORS
Multipurpose Actuators are compact, versatile and designed to lift dynamic loads ranging from 500N (112 pounds) to 7000N (1574 pounds) and at travel speeds up to 47 mm/sec (111 in/min). Each 120 VAC or 12 VDC linear actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications. A selection of AC and DC models is available to meet your specific requirements.
Product Code
001C000372
Company Name
Joyce Dayton Corp
Country of Manufacture
Taiwan(R.O.C)
General Information

Please click on Product Spec and identify the correct Actuators. You may send your Business Enquiry.

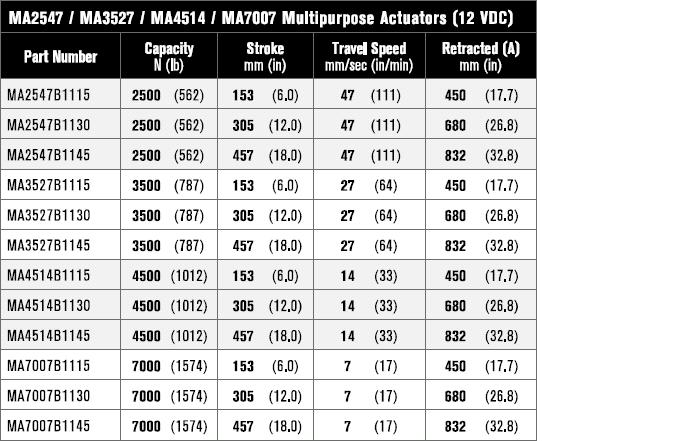

Multipurpose actuators (12 VDC) Total SKUs (12)
Capacity N(lb)Stroke mm (in)Travel Speed mm/sec (in/min)Retracted (A) mm (in)Price
Capacity N(lb)Stroke mm (in)Travel Speed mm/sec (in/min)Retracted (A) mm (in)Price
2500 (562)153 (6.0)47 (111)450 (17.7)
SKU
Each (USD $)
MA2547B1115
Call
2500 (562)305 (12.0)47 (111)680 (26.8)
MA2547B1130
Call
2500 (562)457 (18.0)47 (111)832 (32.8)
MA2547B1145
Call
3500 (787)153 (6.0)27 (64)450 (17.7)
MA3527B1115
Call
3500 (787)305 (12.0)27 (64)680 (26.8)
MA3527B1130
Call
3500 (787)457 (18.0)27 (64)832 (32.8)
MA3527B1145
Call
4500 (1012)153 (6.0)14 (33)450 (17.7)
MA4514B1115
Call
4500 (1012)305 (12.0)14 (33)680 (26.8)
MA4514B1130
Call
4500 (1012)457 (18.0)14 (33)832 (32.8)
MA4514B1145
Call
7000 (1574)153 (6.0)7 (17)450 (17.7)
MA7007B1115
Call

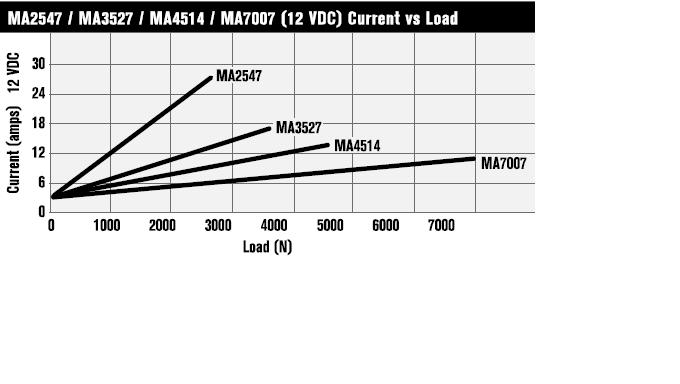

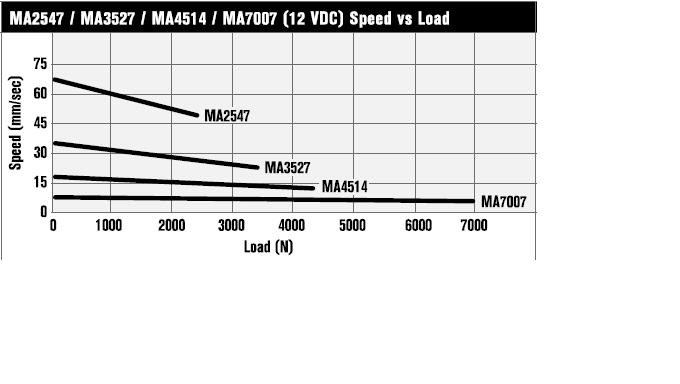

Product DescriptionSpecifications of Multipurpose Actuators (12 VDC)Performance GraphWorksheet

Each Multipurpose Actuator is equipped with a potentiometer and preset limit switches and offers an IP65 rating that qualifies them for many wash-down and outdoor applications.

Features and Benefits:
  • 12 VDC
  • Dynamic loads up to 3500N (787lb)
  • Static load capacity of 4500N (1012 lb)
  • Maximum travel speeds (see chart)
  • 25% duty cycle
  • Clevis-to-clevis mounting
  • Self-locking
  • Preset limit switches can be adjusted
  • Potentiometer
  • IP65 protection rating
  • Steel extension tube and outer tube
  • Optional DC controls
