PRODUCT DETAILS
MULTIPURPOSE ACTUATORS
Multipurpose Actuators are compact, versatile, and it is designed to lift dynamic loads ranging from 562 lb to 1574 lb.
Product Code
001C000373
Company Name
Joyce Dayton Corp
Country of Manufacture
Taiwan(R.O.C)
General Information

Please click on Product Spec and identify the correct Actuators. You may send your Business Enquiry.


Multipurpose actuators (120 VAC) Total SKUs (12)
Capacity N(lb)Stroke mm (in)Travel Speed mm/sec (in/min)Retracted (A) mm (in)Price
Capacity N(lb)Stroke mm (in)Travel Speed mm/sec (in/min)Retracted (A) mm (in)Price
2500 (562)153 (6.0)41 (96)450 (17.7)
SKU
Each (USD $)
Call
2500 (562)305 (12.0) 41 (96)680 (26.8)
Call
2500 (562)457 (18.0)41 (96)832 (32.8)
Call
3500 (787)153 (6.0)23 (54) 450 (17.7)
Call
3500 (787)305 (12.0) 23 (54) 680 (26.8)
Call
3500 (787)457 (18.0)23 (54) 832 (32.8)
Call
4500 (1012)153 (6.0)12 (28) 450 (17.7)
Call
4500 (1012)305 (12.0) 12 (28) 680 (26.8)
Call
4500 (1012)457 (18.0)12 (28) 832 (32.8)
Call
7000 (1574)153 (6.0)6 (14) 450 (17.7)
Call

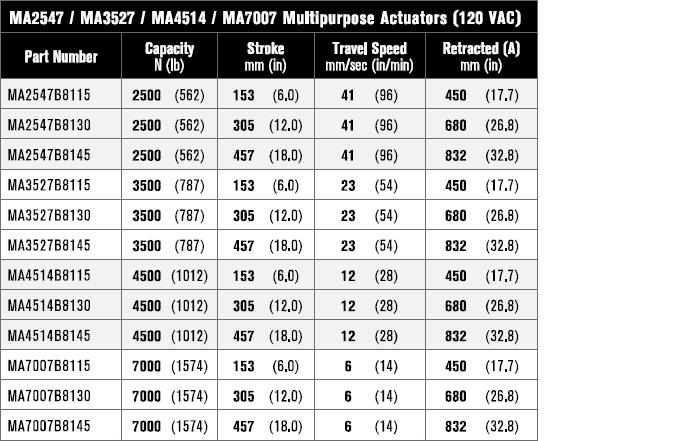

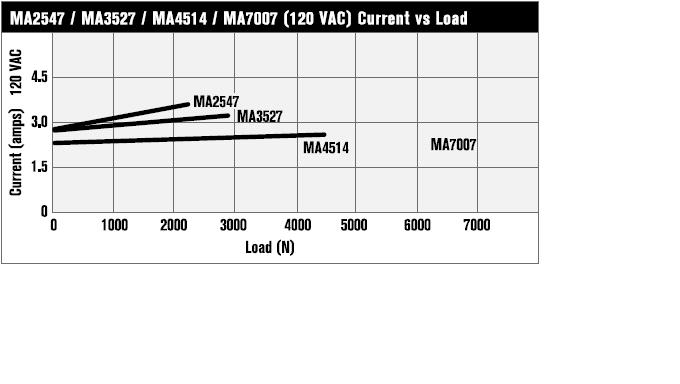

Product DescriptionSpecifications of Multipurpose Actuators (120 VAC)Performance GraphWorksheet

Each Multipurpose Actuator is equipped with a potentiometer and preset limit switches and offers an IP65 rating that qualifies them for many wash-down and outdoor applications.



Features and Benefits:

  • 120 VAC
  • Dynamic loads up to 3500N (787lb)
  • Static load capacity of 4500N (1012 lb)
  • Maximum travel speeds (see chart)
  • 25% duty cycle
  • Clevis-to-clevis mounting
  • Self-locking
  • Preset limit switches can be adjusted
  • Potentiometer
  • IP65 protection rating
  • Steel extension tube and outer tube
  • Optional DC controls
