PRODUCT DETAILS
SOLAR TRACKING ACTUATORS (SA)
In Solar Tracking Actuators their robust and efficient DC motor (24V or 36V) keeps power consumption to a minimum.
Product Code
001C000405
Company Name
Joyce Dayton Corp
Country of Manufacture
Taiwan(R.O.C)
General Information

Please click on Product Spec and identify the correct Actuators. You may send your Business Enquiry.


SA - Solar Actuator Total SKUs (12)
Part Number Voltage Dynamic Load Capacity Static Load Capacity Stroke A Retracted Price
Part Number Voltage Dynamic Load Capacity Static Load Capacity Stroke A Retracted Price
SA5524C450 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 450 mm (18 in.) 764 mm (30.1 in.)
SKU
Each (USD $)
SA5524C450
Call
SA5536C450 36V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 450 mm (18 in.) 764 mm (30.1 in.)
1023CH1102
Call
SA5524C600 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 600 mm (24 in.) 917 mm (36.1 in.)
SA5524C600
Call
SA5536C600 36V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 600 mm (24 in.) 917 mm (36.1 in.)
SA5536C600
Call
SA5524C900 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 900 mm (36 in.) 1,269 mm (50.0 in.)
1023CH1105
Call
SA5536C900 36V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 900 mm (36 in.) 1,269 mm (50.0 in.)
SA5536C900
Call
SA9024C450 24V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 450 mm (18 in.) 810 mm (31.9 in.)
SA9024C450
Call
SA9036C450 36V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 450 mm (18 in.) 810 mm (31.9 in.)
1023CH1108
Call
SA9024C600 24V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 600 mm (24 in.) 963 mm (37.9 in.)
SA9024C600
Call
SA9036C600 36V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 600 mm (24 in.) 963 mm (37.9 in.)
SA9036C600
Call

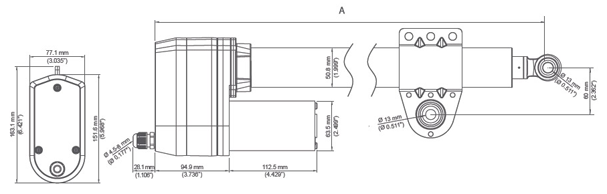

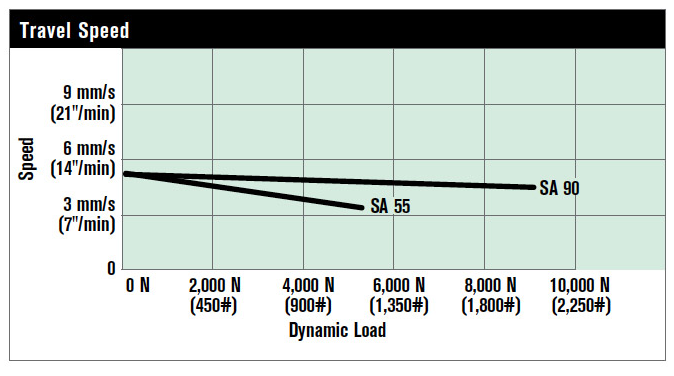

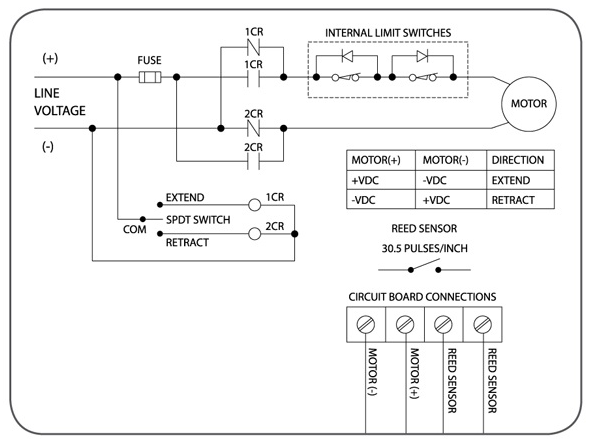

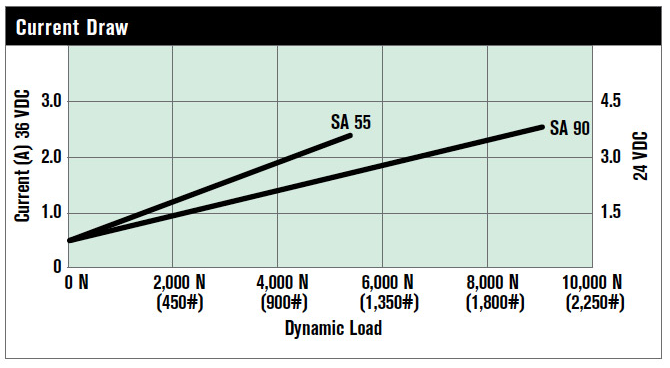

Product DescriptionTypical Plan ViewTravel SpeedCurrent DrawElectrical SchematicSolar Worksheet

Solar Actuators are designed to precisely position smaller solar tracking Equipment. Their robust and efficient DC motor (24V or 36V) keeps power consumption to a minimum. Travel speeds remain nearly constant regardless of the load.

Ideal for rugged environments common to the solar industry, these cost effective SA actuators have an IP65 protection rating. Self-locking features in the mechanism ensure that the solar actuator can be held in position throughout the daily tracking cycle.
Specifications

  • Double clevis mounting for easy installation
  • Clutch for overload protection
  • Adjustable limit switches for flexible travel settings
  • Reed sensor digital feedback for accurate positioning
  • Duty cycle is 25% (4 min. running, 12 min. rest)
  • IP65 rating provides protection against outdoor conditions
  • Lubricated for life
Options

  • Available in 24V and 36V
  • Three stroke lengths
  • Trunnion or end clevis mounts available
