PRODUCT DETAILS

ACME SCREW (STM)

These self-locking, compact solar tracking jacks are designed to precisely position loads at speeds up to 3.75 inches per minute.

Product Code

001C000407

Company Name

Joyce/Dayton Corp.

Country of Manufacture

General Information

Please click on Product Spec and identify the correct Screw. You may send your Business Enquiry.

STM - Machine Screw Jacks Total SKUs (4)

Part Number

Typical Dynamic Load Capacity

Typical Static Load Capacity

Price

Part Number	Typical Dynamic Load Capacity	Typical Static Load Capacity	Price
STM-2	4,000 lb	4,000 lb	SKU Each (USD $) 1023CK11101 Call
STM-5	10,000 lb	10,000 lb	SKU Each (USD $) 1023CK11102 Call
STM-15	30,000 lb	30,000 lb	SKU Each (USD $) 1023CK11103 Call
STM-30	60,000 lb	60,000 lb	SKU Each (USD $) 1023CK11104 Call

Product DescriptionAcme (STM) Solar Tracking JackSolar Worksheet

These self-locking, compact solar tracking jacks are designed to precisely position loads at speeds up to 3.75 inches per minute.

Aluminum housing
Alloy screw
Customer to provide trunnion pins. They should be made of steel with hardness greater than 30 HRC, yield strength greater than 110 KSI, and supported within 1/16 inch of the actuator housing.

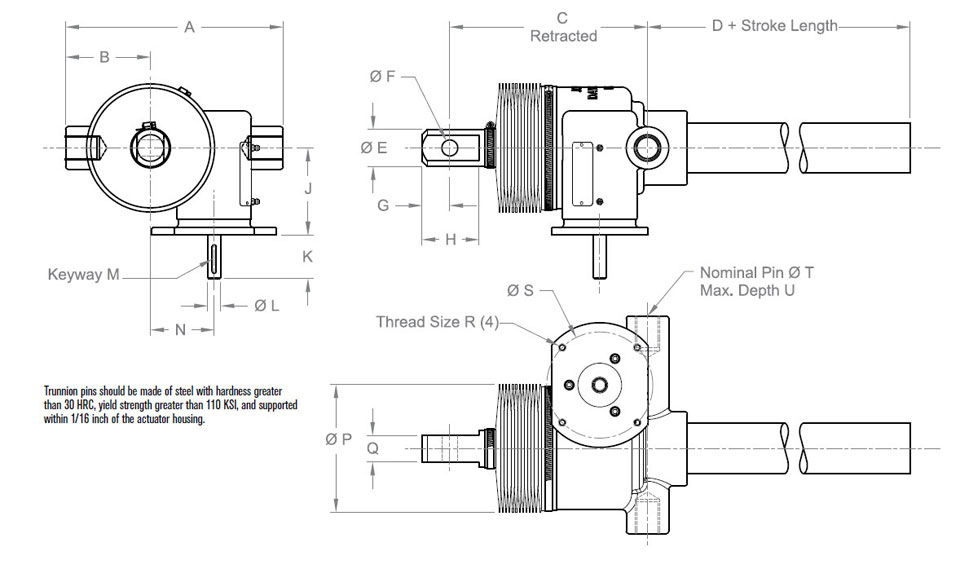

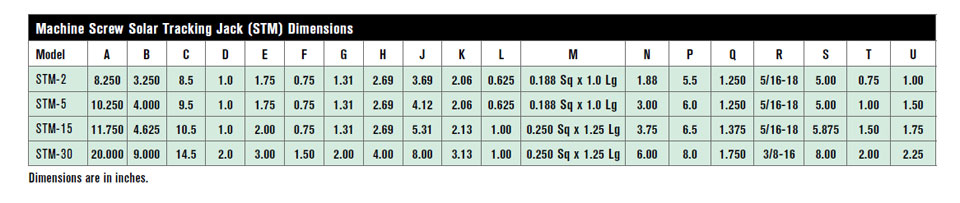

Acme (STM) Solar Tracking Jack

Please click the below link to view the pdf.
