BALL SCREWS AND NUTS
A ball screw is a mechanical linear actuator that translates rotational motion to linear motion with little friction.
Joyce Dayton Corp
Please click on Product Spec and identify the correct Screw. You may send your Business Enquiry.

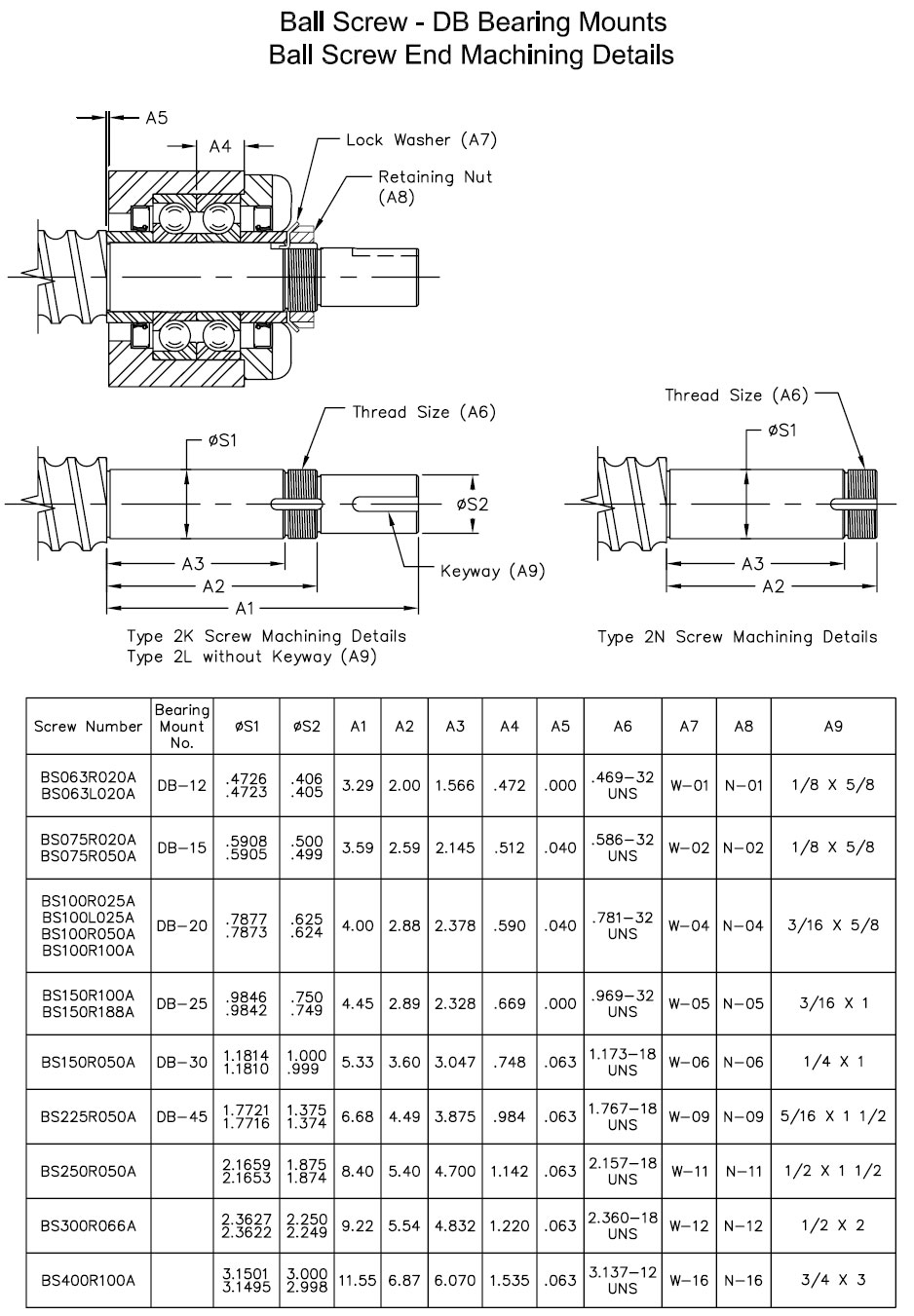

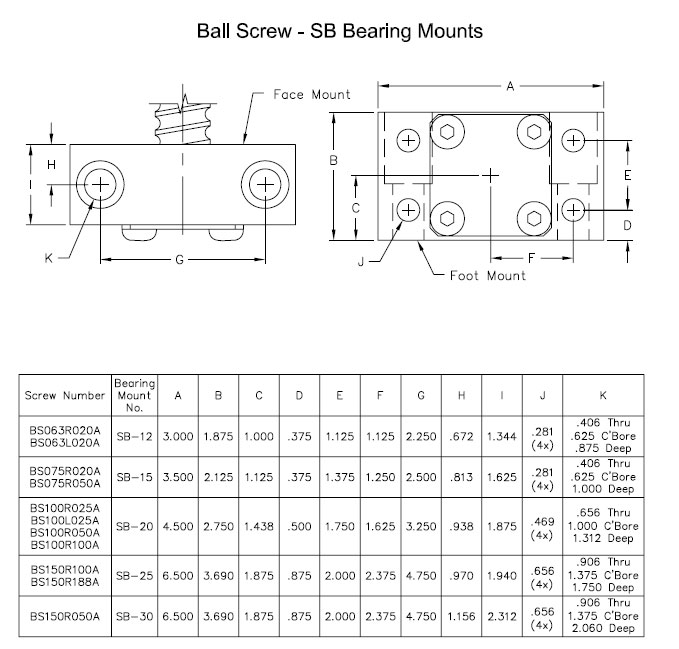

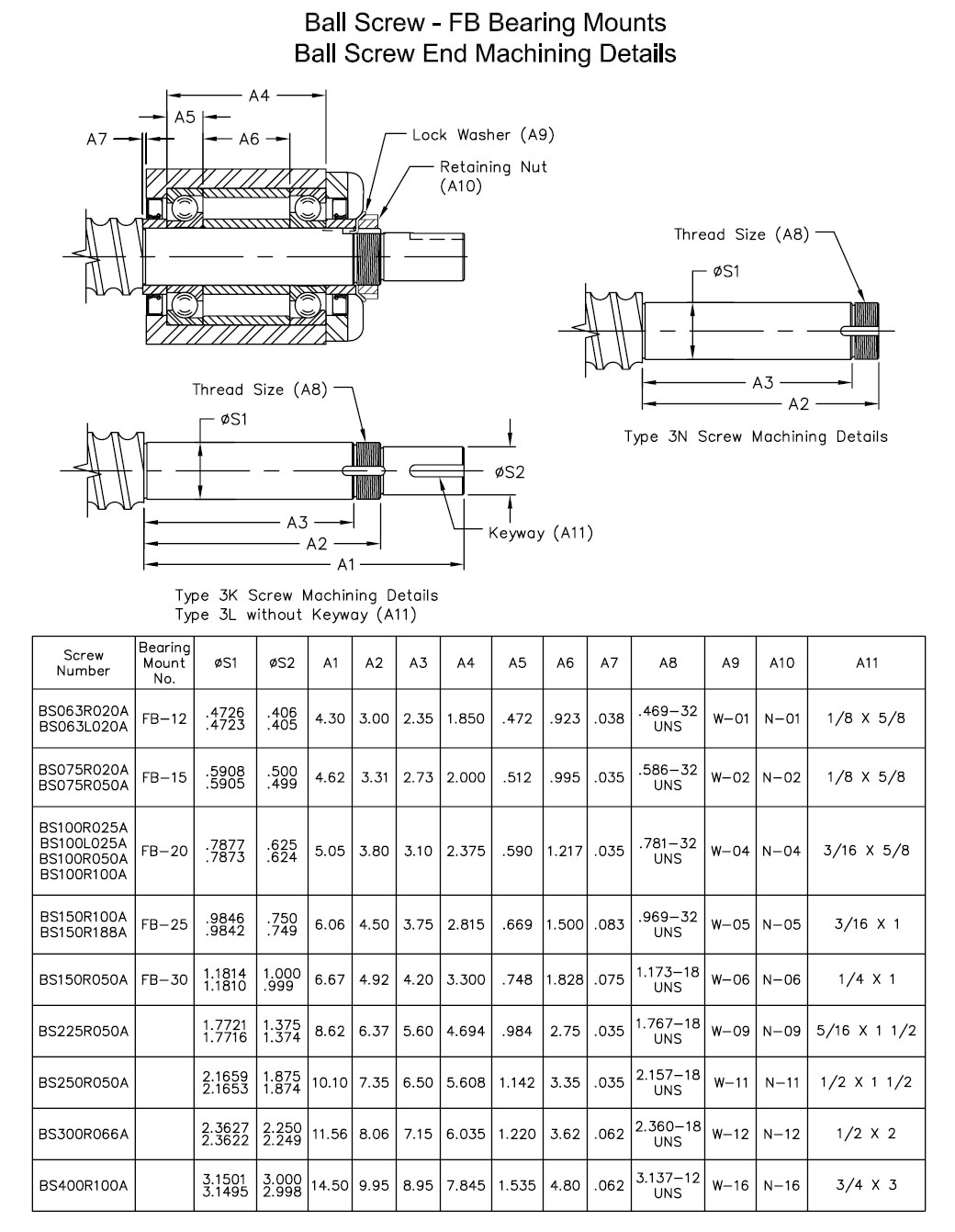

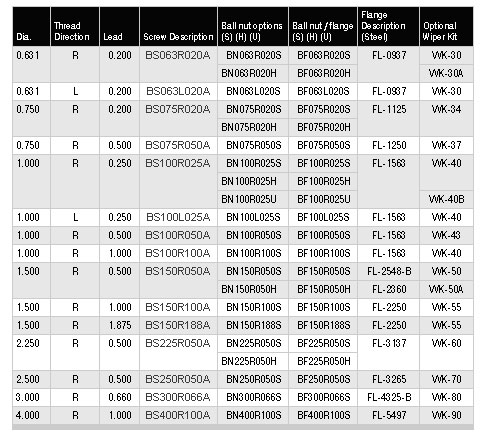

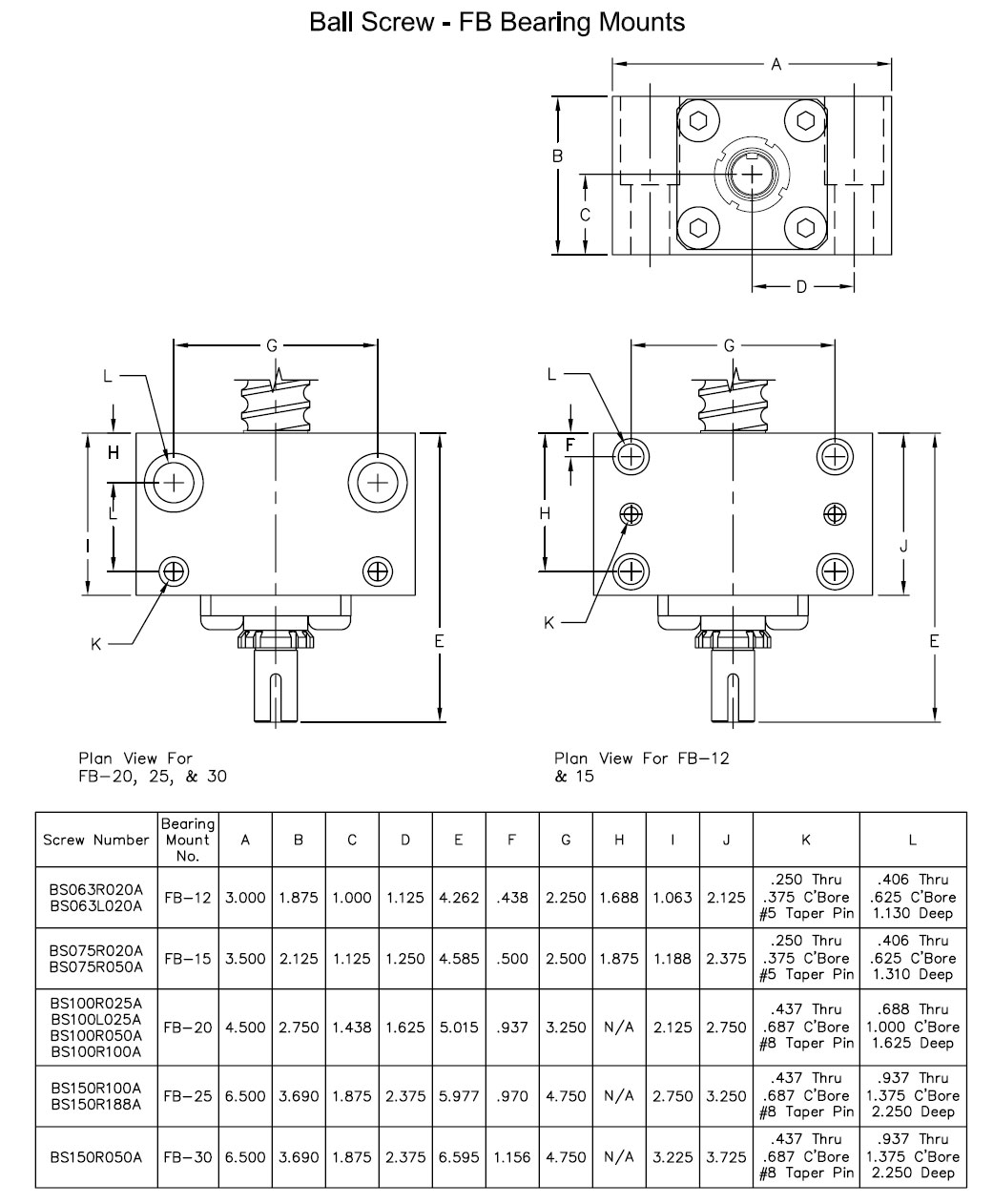

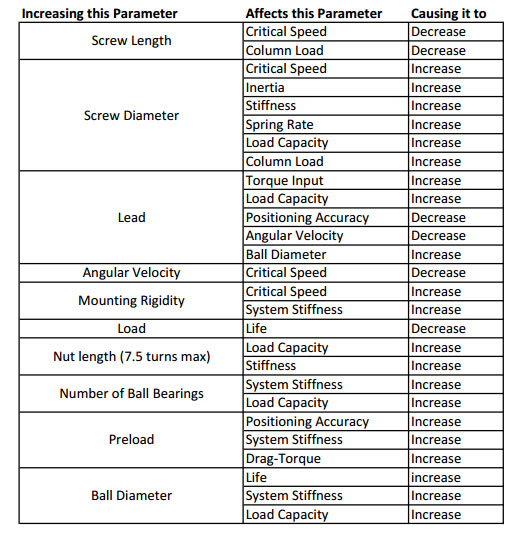

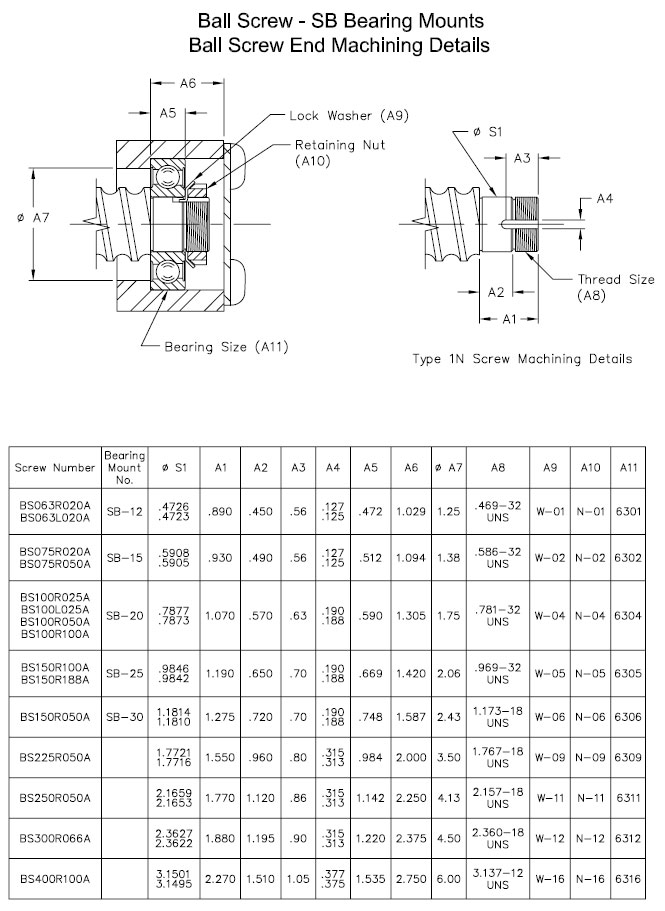

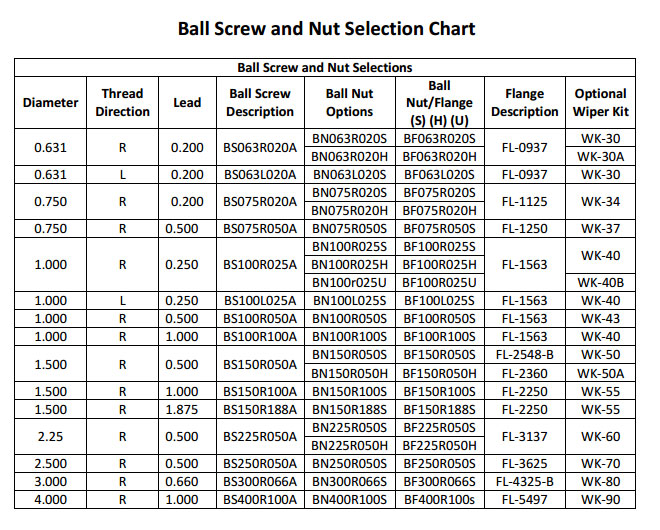

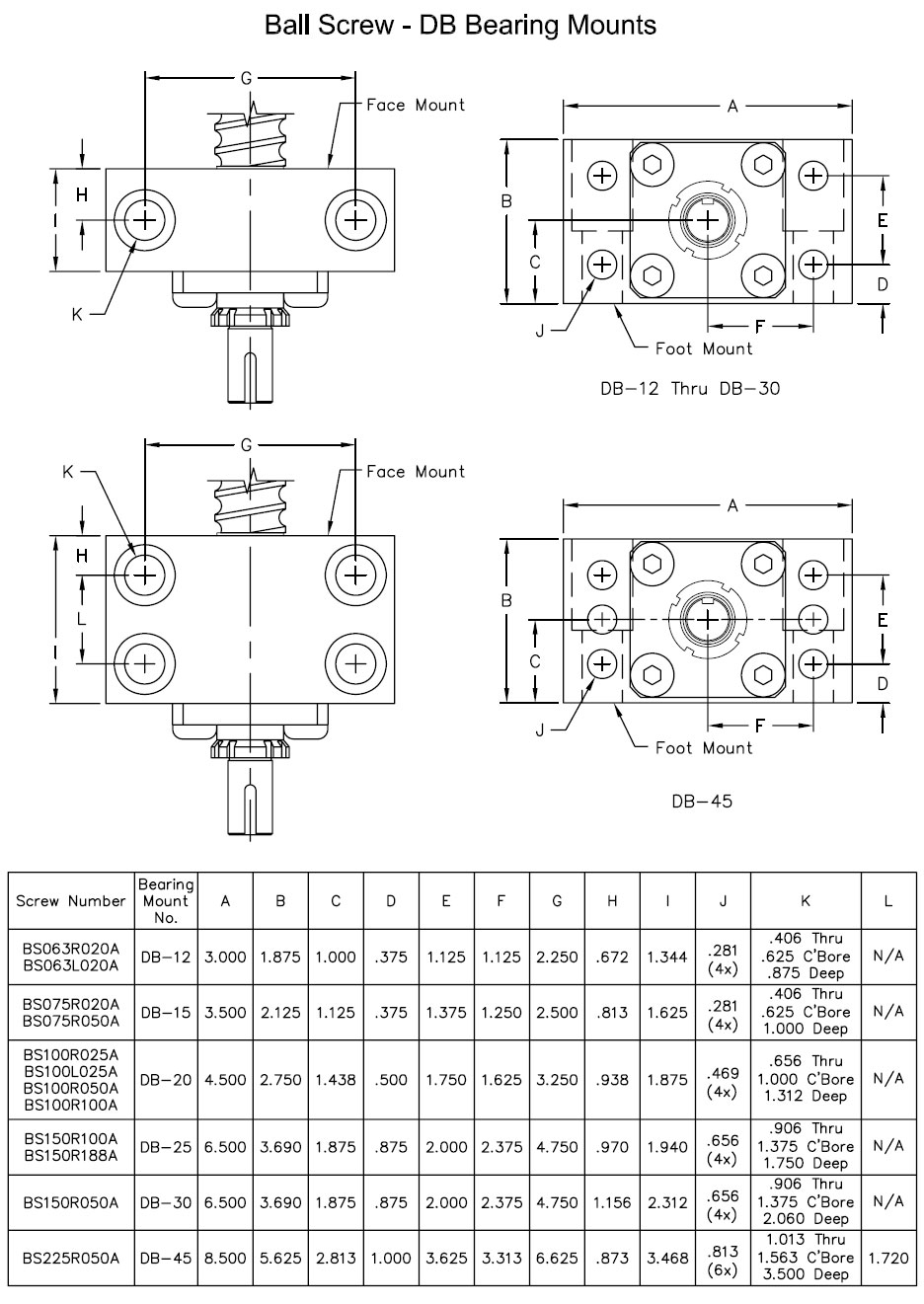

Product DescriptionBALL SCREWS AND NUTS PERFORMANCE GRAPHBALL SCREWS AND NUTS CHARTBALL SCREWS AND NUTS SB BEARING MOUNTSBALL SCREWS AND NUTS DB BEARING MOUNTSBALL SCREWS AND NUTS FB BEARING MOUNTSEffect of Change in Parameter
Ball Screws and Nuts
We offers Ball screw and ball nut assemblies in a variety of screw leads and in diameters ranging from .631" to 4.000". Ball nuts and steel flanges are available for each screw size and lead. Choose the ball nut capacity that meets your application requirements. Several ball screws are available in either right-hand or left-hand threads. Complete assemblies include bearing blocks and finished machining on screw ends.
Standard ball screws from 0.631" through 4.000" diameters.
Standard leads ranging from 0.200" through 1.000".
Right-hand and left-hand threads availble on select sizes.
Many ball screws available with standard or high capacity ball nut options
Alloy steel screws with black oxide coating for added corrosion resistance
Screw ends can be machined to customer specifications
Bearing blocks available for most sizes.
