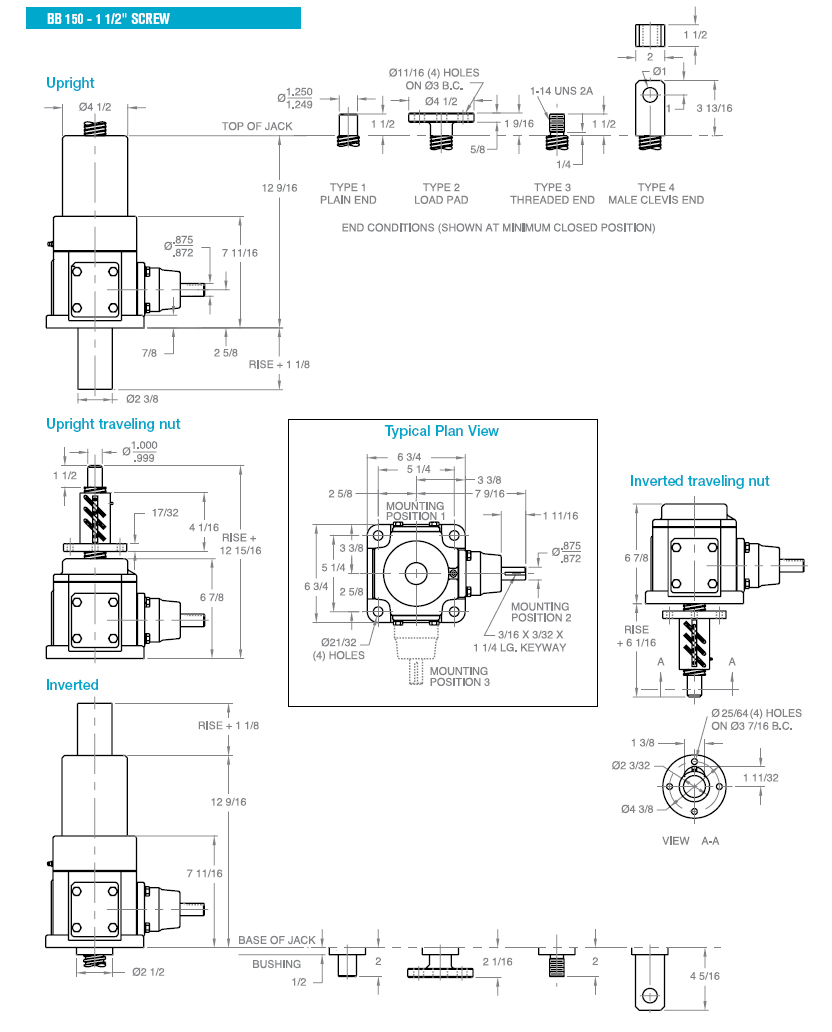

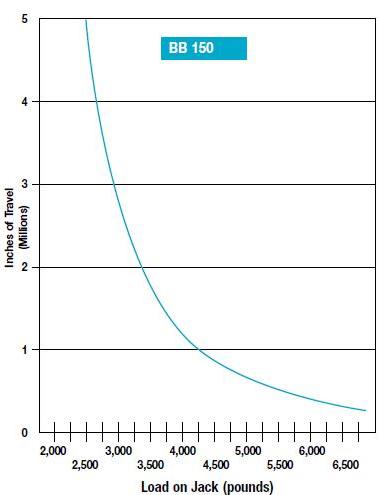

PRODUCT DETAILS Order By Product Code Order By Product Name Order By Newest BEVEL BALL ACTUATORS Bevel Ball Actuators provide higher speed and less heat generation than other mechanical actuators. Product Code 001C000370 Company Name Joyce Dayton Corp Country of Manufacture UOM Each SKU ID Quantity General Information Please click on Product Spec and identify the correct Screw Type. You may send your Business Enquiry. Return Policy Click here to enlarge Image Link BB 150 - 1 1/2" SCREW 80 C SELECT GroupName: 1 1/2" SCREW 2 1/4" SCREW 3" SCREW 4" SCREW Total Groups(4) SKU: Description: Price: Display Notes: Stock Quantity: Sold in Multiples of(CasePack): Minimum Order Quantity: Enter Quantity: 1 1/2" SCREW Total SKUs (4) ModelScrew Dia/LeadStatic CapacityScrew In Compression(Inverted Assembly)Screw In Compression(Upright Assembly)Screw In Tension(Inverted Assembly)Screw In Tension(Upright Assembly) ModelScrew Dia/LeadStatic CapacityScrew In Compression(Inverted Assembly)Screw In Compression(Upright Assembly)Screw In Tension(Inverted Assembly)Screw In Tension(Upright Assembly) BB150 1.50/.25 Product DescriptionBEVEL BALL ACTUATORSLIFE EXPECTANCYProduct Options High-efficiency Bevel Ball Actuators are designed for near-continuous duty operation. BB series actuators require a brake motor or other external locking device to hold position. They also offer more precise positioning and repeatability than hydraulic cylinders. Bevel ball actuators are available in 7.5-ton to 100-ton static capacities and are able to attain travel speeds of up to 48 feet per minute.Standard jacks have right hand ball screws. Left hand ball screws are available as an option. A threaded end condition is standard on translating bevel ball actuators load pad and clevis ends are also available. KFTN designs have a plain turned end condition. Bevel Ball Actuators are ideal for either single operation or multi-actuator systems. As many as three output shafts may be specified for mounting motors, limit switches, readout devices and other accessories. Bevel Ball Actuators in the following designs: Translating Keyed for traveling nut (KFTN) Ball Screw Options Right hand thread standard Left hand thread available on many models Special pitch/lead available Special finishes available Special machining options Encoders Standard 200 PPR, quadrature mount on input shaft OR Ring Style 60 PPR, quadrature mounts to C-faced motor flange Encoders Finishes Enamel finish (standard) Epoxy finish Epoxy finish – Steel It epoxy Outdoor paint process Custom finishes available Anodized (250-lb to 1-ton) Nickel, Xylan®, Armoloy® Finishes Limit Switches Rotary cam (2-7 switches) SPDT standard DPDT available Explosion proof available Limit Switches Lubrication Standard operating (40°F to 220°F) Low temperature option High temperature option Food grade option Oversized Ball Bearings Available for ball screw jacks Limits screw backlash to 0.003" Protective Boots Protection from dirt and dust Guard against moisture Guard against corrosive contaminants Neoprene coated nylon (std) Special materials available Boot Material Chart Protective Boots Screw Stops Standard on ComDRIVEs Adjustable Bolt- on
