Precise Position Sensing

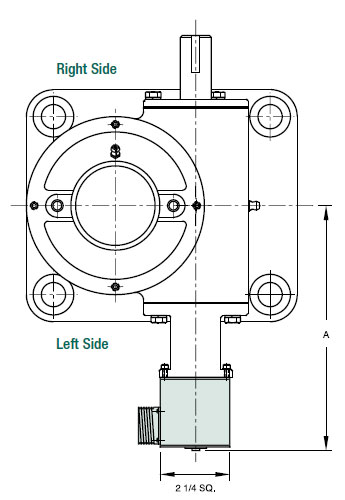

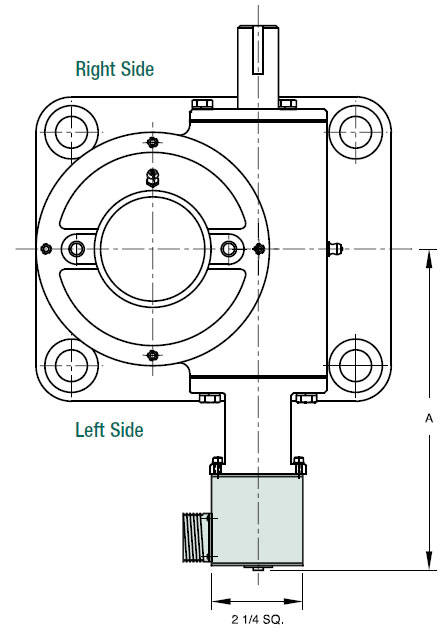

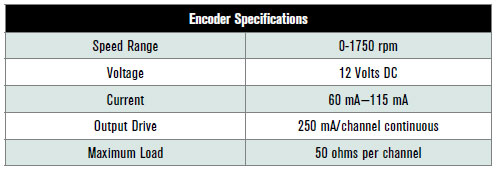

It can equip machine screw jack models between 2-ton and 150-ton capacity, and electric cylinders with an encoder to allow accurate position sensing within increments of 0.001 inches. The encoder combines with your control system to monitor screw travel, number of revolutions, and travel limits. Joyce’s shaft-mounted encoder offers easy installation, proven reliability and virtually maintenance-free operation. It includes a six-pin electrical connector, worm shaft coupling, and mounting adapter. Standard encoders are 200 pulses per revolution. Mating connector cables can be purchased separately.

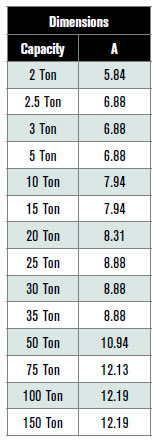

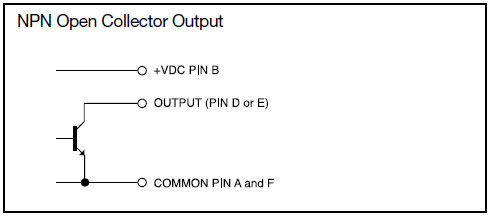

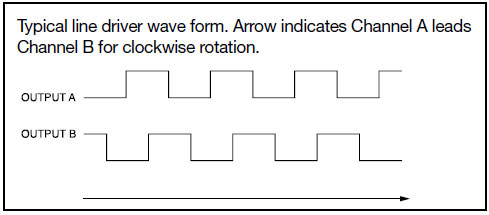

For open connector and pull-up resistor units, Pin A and Pin F are tied together. Either pin may be used for common.
A Power supply and output common.
B + Volts DC.
D Output A.
E Output B.
F Power supply and output common.
Note: Ring encoders are also available.
Contact us with your requirements.
Complete ordering information is available within
the product sections.
