INTEGRATED ACTUATORS

Integrated Actuators are used for opening or closing the valve or moving the fluid, and are fabricated as an integral part of the device.

Product Code

001C000368

Company Name

Joyce/Dayton Corp.

Country of Manufacture

General Information

Please click on Product Spec and identify the correct Screw. You may send your Business Enquiry.

Click here to enlarge

Link

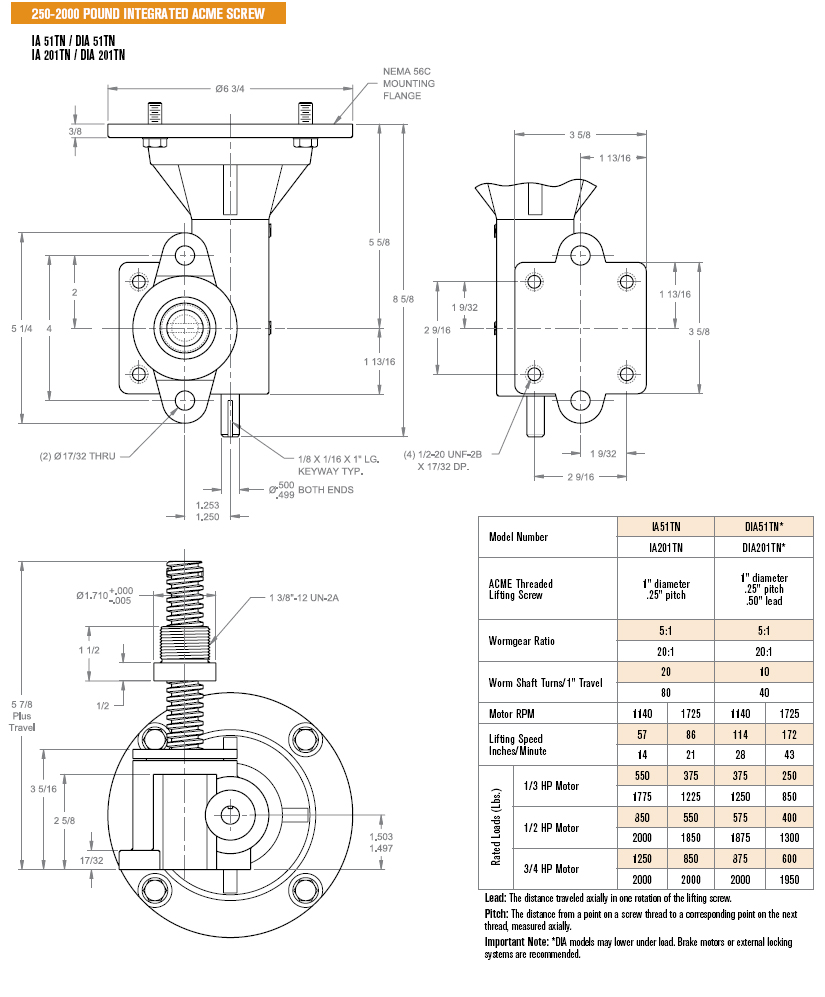

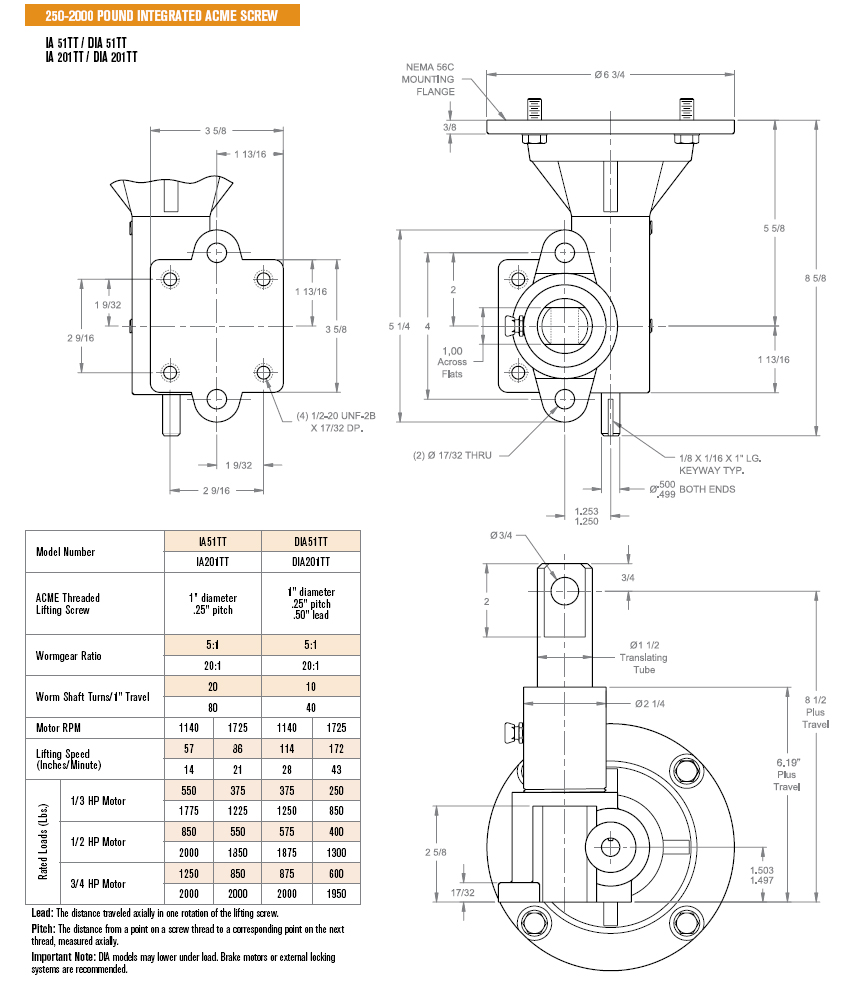

250-2000 POUND INTEGRATED ACME SCREW,

250-2000 POUND INTEGRATED ACME SCREW.

SELECT GroupName:

Total Groups(2)

250-2000 POUND INTEGRATED ACME SCREW(IA 51TT / DIA 51TT) Total SKUs (48)

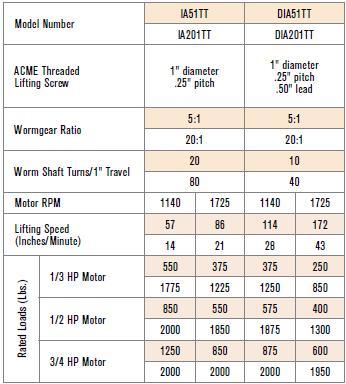

Model Number	ACME Threaded Lifting Screw	Wormgear Ratio	Worm Shaft Turns/1 Inch Travel	Motor RPM	LiftingSpeed(Inch/Min)	Rated Loads (Lbs)
						1/2 HP Motor	1/3 HP Motor	3/4 HP Motor

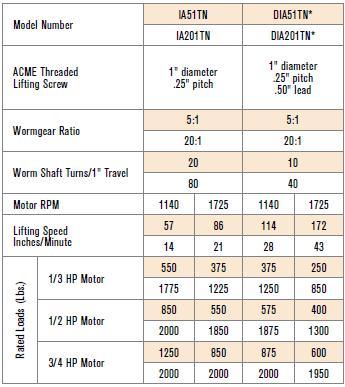

Model Number	ACME Threaded Lifting Screw	Wormgear Ratio	Worm Shaft Turns/1 Inch Travel	Motor RPM	LiftingSpeed(Inch/Min)	Rated Loads (Lbs)
Model Number	ACME Threaded Lifting Screw	Wormgear Ratio	Worm Shaft Turns/1 Inch Travel	Motor RPM	LiftingSpeed(Inch/Min)	1/2 HP Motor	1/3 HP Motor	3/4 HP Motor
Integrated Actuators IA51 TT	1" diameter .25" pitch	5:1	20	1140	57
Integrated Actuators IA51 TN	1" diameter .25" pitch	5:1	20	1140	57
Integrated Actuators IA51 TT	1" diameter .25" pitch	5:1	20	1725	86
Integrated Actuators IA51 TN	1" diameter .25" pitch	5:1	20	1725	86
Integrated Actuators IA201 TT	1" diameter .25" pitch	20:1	80	1140	14
Integrated Actuators IA201 TN	1" diameter .25" pitch	20:1	80	1140	14
Integrated Actuators IA201 TT	1" diameter .25" pitch	20:1	80	1725	21
Integrated Actuators IA201 TN	1" diameter .25" pitch	20:1	80	1725	21
DIA51TT	1" diameter .25" pitch .50" lead	5:1	10	1140	114
DIA51TN	1" diameter .25" pitch .50" lead	5:1	10	1140	114

Product DescriptionIntegrated Actuators SpecificationProduct Options

Integrated Actuators are designed to lift and precisely position loads of up to one ton. Translating Tube (TT) integrated actuators are well suited for use in industrial environments where protection of the lifting screw mechanism is critical and low maintenance is desired. Traveling Nut (TN) integrated actuators are best suited for use in environments that are relatively clean and free of dust. Requiring only electric power, integrated actuators may be used in place of hydraulic cylinders, eliminating the cost and potential for leaks associated with hydraulic systems.

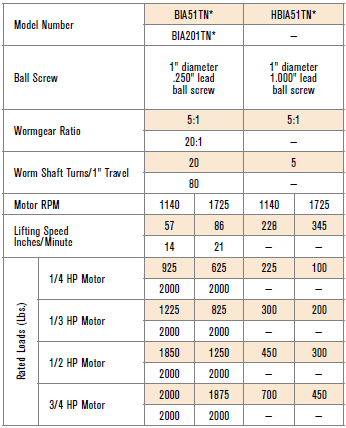

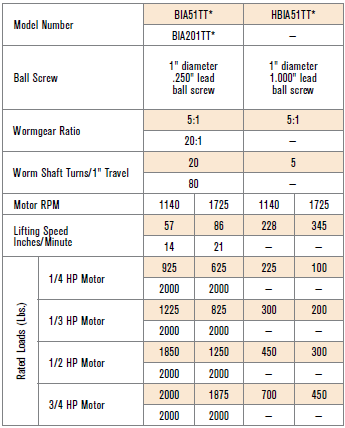

Integrated actuators include NEMA 56C-face motor flanges and are capable of moving at speeds up to 345 inches per minute. Both acme screw (IA, DIA) and ball screw (BIA, HBIA) models are designed to operate at the charted capacities under both tension and compression loading.

Integrated Actuator Features and Benefits:

Chrome plated (BIA, HBIA) or stainless steel (IA, DIA) inner cylinder tube resists harsh contaminants while providing smooth cylinder translation.
Tube seals retain lubrication while preventing dirt and grime from entering the internal cavity and contaminating the lifting screw.
Aluminum cast housing provides durable protection for screw and internal components.
Rigid cylinder tube guide bearings provide resistance to buckling (external guides are required when side loads are present).
Alloy steel input shafts riding on tapered roller bearings provide proper worm gear alignment for increased service life.
Input shaft seals prevent the loss of lubrication.

Integrated Actuators in the following designs:

Translating tube
Traveling nut

Integrated Actuators Specification

Ball Screw Options Right hand thread standard Left hand thread available on many models Special pitch/lead available Special finishes available Special machining options	Encoders Standard 200 PPR, quadrature mount on input shaft OR Ring Style 60 PPR, quadrature mounts to C-faced motor flange Encoders	Finishes Enamel finish (standard) Epoxy finish Epoxy finish – Steel It epoxy Outdoor paint process Custom finishes available Anodized (250-lb to 1-ton) Nickel, Xylan®, Armoloy® Finishes
Follower Nuts For KFTN jack For translating jack	Hand Wheels 4" – 12" dia. (standard) Aluminum (standard) Stainless steel available Hand Wheels	Limit Switches Rotary cam (2-7 switches) SPDT standard DPDT available Explosion proof available Limit Switches
Lubrication Standard operating (40°F to 220°F) Low temperature option High temperature option Food grade option	Machine Screws Right hand thread standard Left hand thread available on many models Special material available Special pitch/lead available Special finishes available Special machining options Special end conditions available	Oversized Ball Bearings Available for ball screw jacks Limits screw backlash to 0.003"
Screw Stops Standard on ComDRIVEs Adjustable Bolt- on
