PRODUCT DETAILS
MACHINE SCREW BEARING BLOCKS
Machine Screw Bearing Blocks are suited for high duty cycle conditions where frictional forces cause a thermal transfer of energy into the screw assembly.
Product Code
001C000398
Company Name
Joyce Dayton Corp
Country of Manufacture
USA
General Information

Please click on Product Spec and identify the correct Ball Screw Jacks. You may send your Business Enquiry.

Total SKU (1)
Price
Price
SKU
Each (USD $)
Call

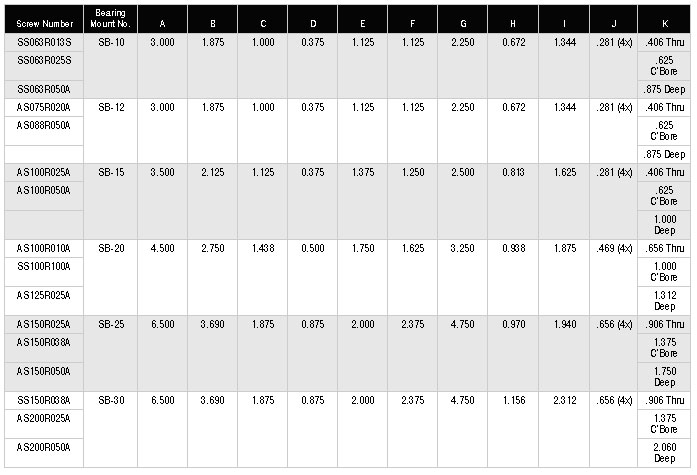

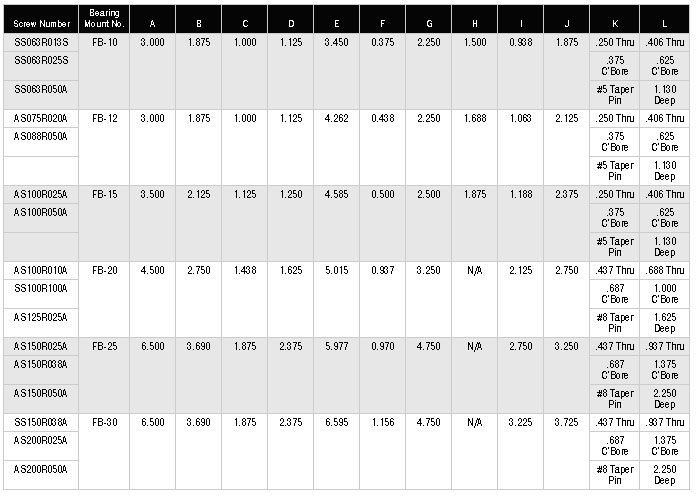

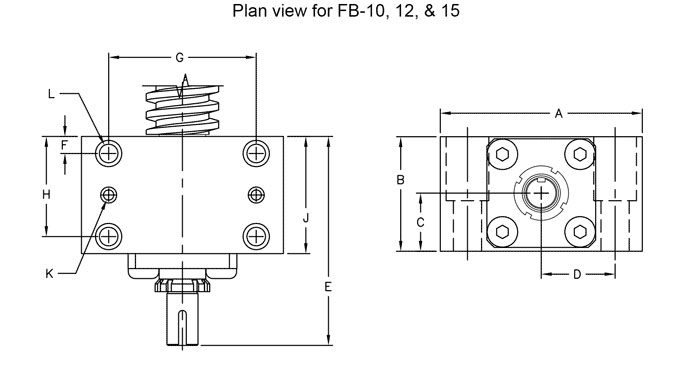

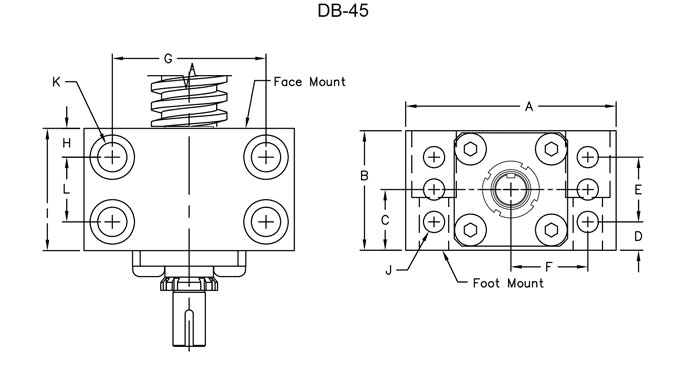

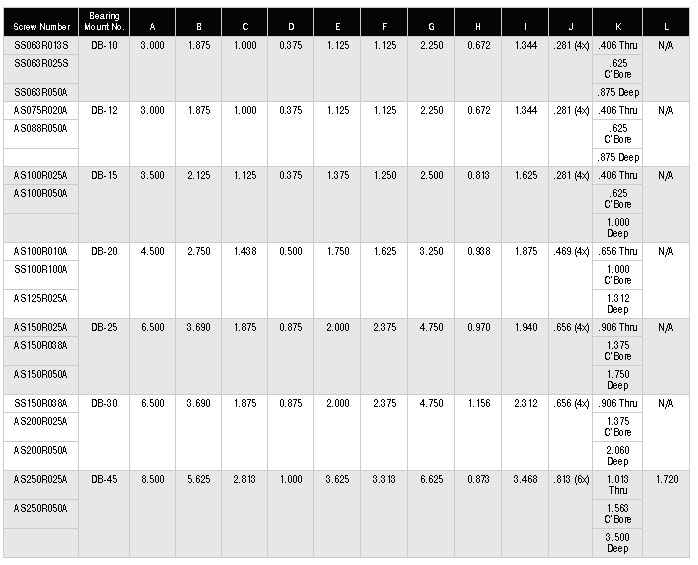

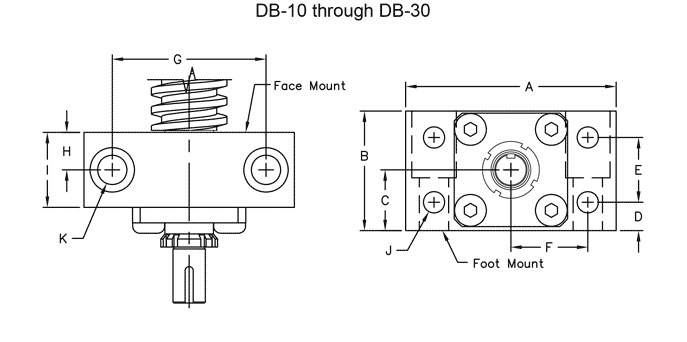

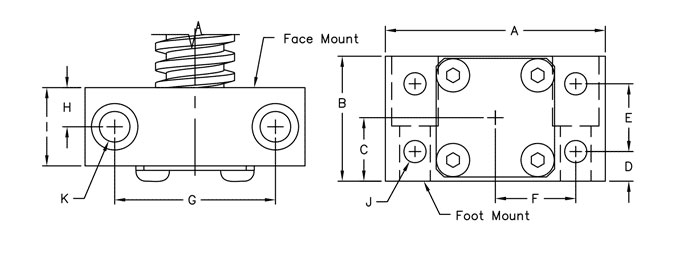

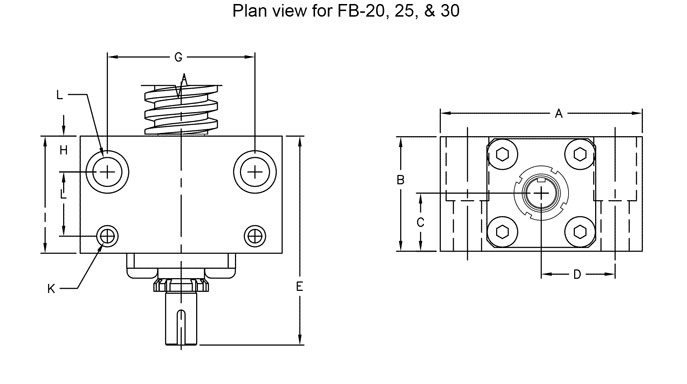

Product DescriptionSB Bearing BlocksFB Bearing BlocksDB Bearing Blocks

Machine Screw Bearing Blocks



Machine Screw Bearing Blocks are suited for high duty cycle conditions where frictional forces cause a thermal transfer of energy into the screw assembly. The resulting thermal migration will cause the screw to expand axially. Screw end machining and fit of the bearing support are designed to account for this expansion.

 Bearing blocks used in screw & nut assemblies may not be rated for the same static load as the screws or nuts with which they are used. Contact us to verify that bearing blocks are adequately sized for the required loads.
