MACHINE SCREW ComDRIVEs

Com DRIVE is a self-contained actuator package that combines a machine screw jack, motor, and gear reducer into a single compact unit.

Product Code

001S000357

Company Name

Joyce Dayton Corp

Country of Manufacture

General Information

Please click on Product Spec and identify the correct Ball Screw Jacks. You may send your Business Enquiry.

Click here to enlarge

Link

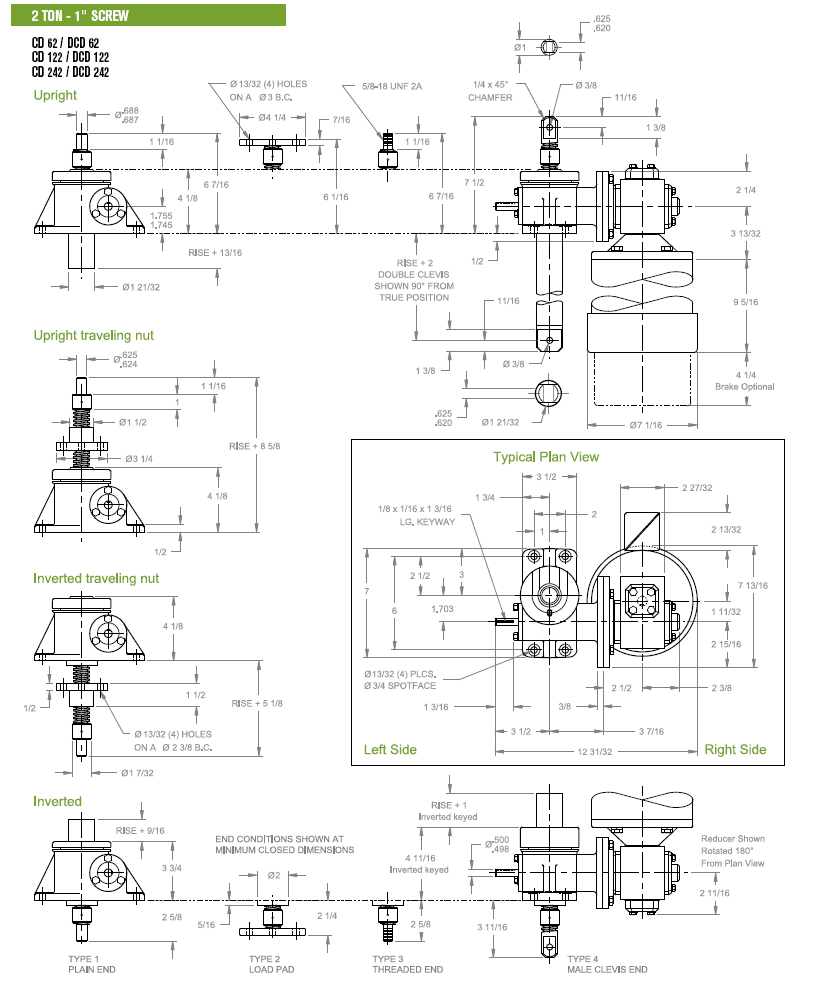

2 TON 1" SCREW

SELECT GroupName:

Total Groups(8)

2 TON Total SKUs (27)

Model No	Reducer Ratio	Travel Speed IPM	Lifting Capacity Lbs
			1/2HP	1/3HP	3/4HP

Model No	Reducer Ratio	Travel Speed IPM	Lifting Capacity Lbs
Model No	Reducer Ratio	Travel Speed IPM	1/2HP	1/3HP	3/4HP
CD62	5	13.88
CD62	7 1/2	9.5
CD62	10	7.04
CD122	5	6.94
CD122	7 1/2	4.75
CD242	5	3.47
CD242	7 1/2	2.38
CD242	10	1.76
DCD62	5	27.75
DCD62	7 1/2	19

Product DescriptionMACHINE SCREW ComDRIVEs Column Loading ChartProduct Options

Machine Screw ComDRIVE ton capacities. They provide travel speeds up to 35.1 inches per minute.Com DRIVEs with single lead screws (CD) are self-locking those with double lead screws (DCD) may require a brake motor or external locking device to hold position. Four standard end conditions are available and Com DRIVEs can be fitted with protective boots. Limit switches, anti-backlash devices, and other options are also available.

Com DRIVE Benefits:

Can power an entire jacking system.
Reduces the number of components that must be specified.
Simplifies design.
Reduces installation costs with only a single plate needed to mount the jack body.
Reduces the number of couplings and shafts required in multi-jack systems.
Standard 230/460 volt, 3-phase, 60 hertz motor included.
Com DRIVES can be specified without the motor.
The reducer flange accepts standard NEMA motor frame sizes.

Anti-backlash Devices Available for machine screw jacks Available for metric (trapezoidal) jacks Limits lifting screw movement Anti-backlash Devices	ComDRIVE Options Special reducer ratios available Special mounting positions available Special motor adapters available Mount limit switch to gear reducers	Encoders Standard 200 PPR, quadrature mount on input shaft OR Ring Style 60 PPR, quadrature mounts to C-faced motor flange Encoders
Finishes Enamel finish (standard) Epoxy finish Epoxy finish – Steel It epoxy Outdoor paint process Custom finishes available Anodized (250-lb to 1-ton) Nickel, Xylan®, Armoloy® Finishes	Follower Nuts For KFTN jack For translating jack	Input Shaft (worm) Square or hex to fit tool Special lengths 17-4 stainless steel available Metric diameters available One side can be cut off Other modifications available Input shaft cover available
Limit Switches Rotary cam (2-7 switches) SPDT standard DPDT available Explosion proof available Limit Switches	Lubrication Standard operating (40°F to 220°F) Low temperature option High temperature option Food grade option	Machine Screws Right hand thread standard Left hand thread available on many models Special material available Special pitch/lead available Special finishes available Special machining options Special end conditions available
Mechanical Counters 0.001" increments (CNT0) Counters	Potentiometers 0-10V (POTA) 4-20mA (POTB) 0-10V with limit switches (POTC) 4-20mA with limit switches(POTD) IP65 available Potentiometers	Protective Boots Protection from dirt and dust Guard against moisture Guard against corrosive contaminants Neoprene coated nylon (std) Special materials available Boot Material Chart Protective Boots
Screw Stops Standard on ComDRIVEs Adjustable Bolt- on	Thrust Rings Used in applications where static loads exceed jack capacity	Wormgear Sets Right hand gear set standard Left hand available on many models 25:1 ratio option available on several models
