METRIC (TRAPEZOIDAL) SCREWS AND NUTS
Trapezoidal lead screws and nuts are power transmission screw threads similar to the Acme series but made to metric dimensions and standards.
Metric (Trapezoidal) Screws and Nuts
We offers Metric screw and nut assemblies in a variety of screw leads and in diameters ranging from 20 mm up to 55 mm. Bronze nuts and steel flanges are available for each screw size. Complete assemblies include bearing blocks and finished machining on screw ends.
Standard trapezoidal threads from 20 mm through 55 mm diameters.
Standard leads ranging from 5 mm through 12 mm.
Right-hand and left-hand threads available.
Alloy steel screws.
Screw ends can be machined to customer specifications.
Bearing blocks available for all standard sizes.
Joyce Dayton Corp
Please click on Product Spec and identify the correct Screw. You may send your Business Enquiry.

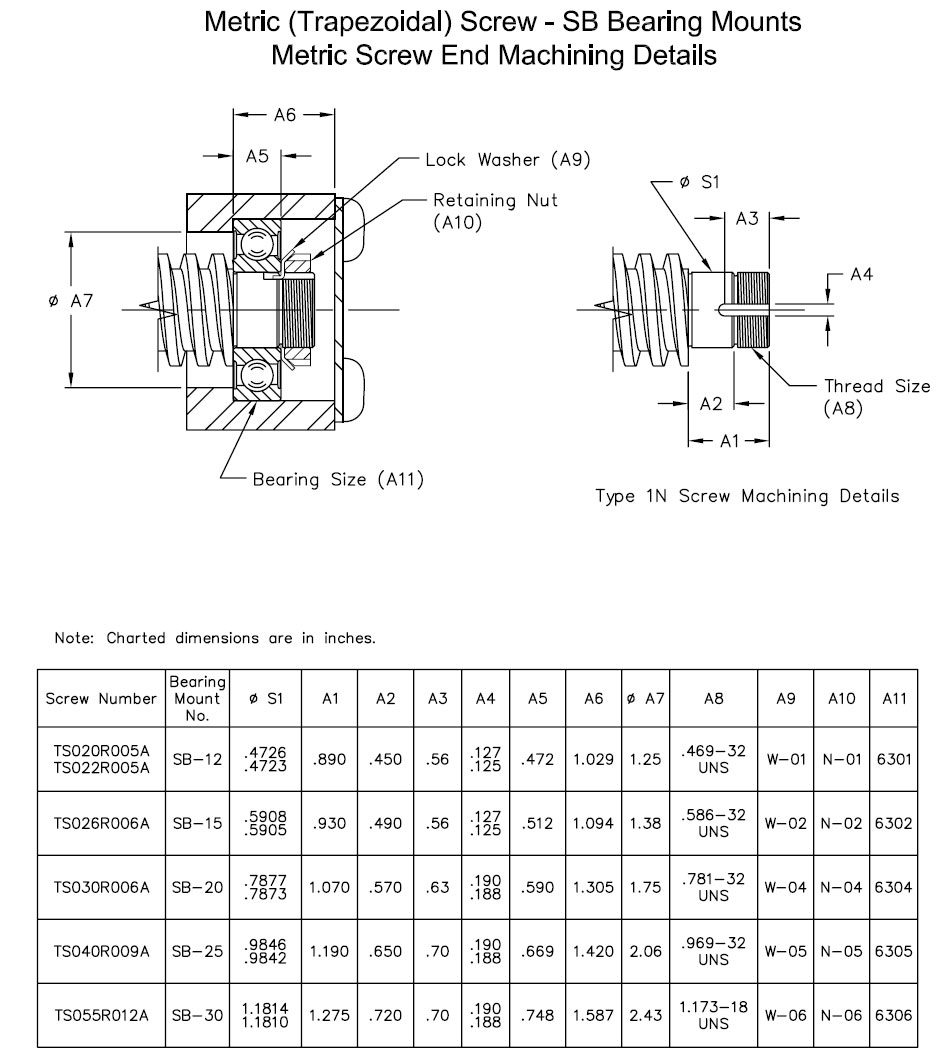

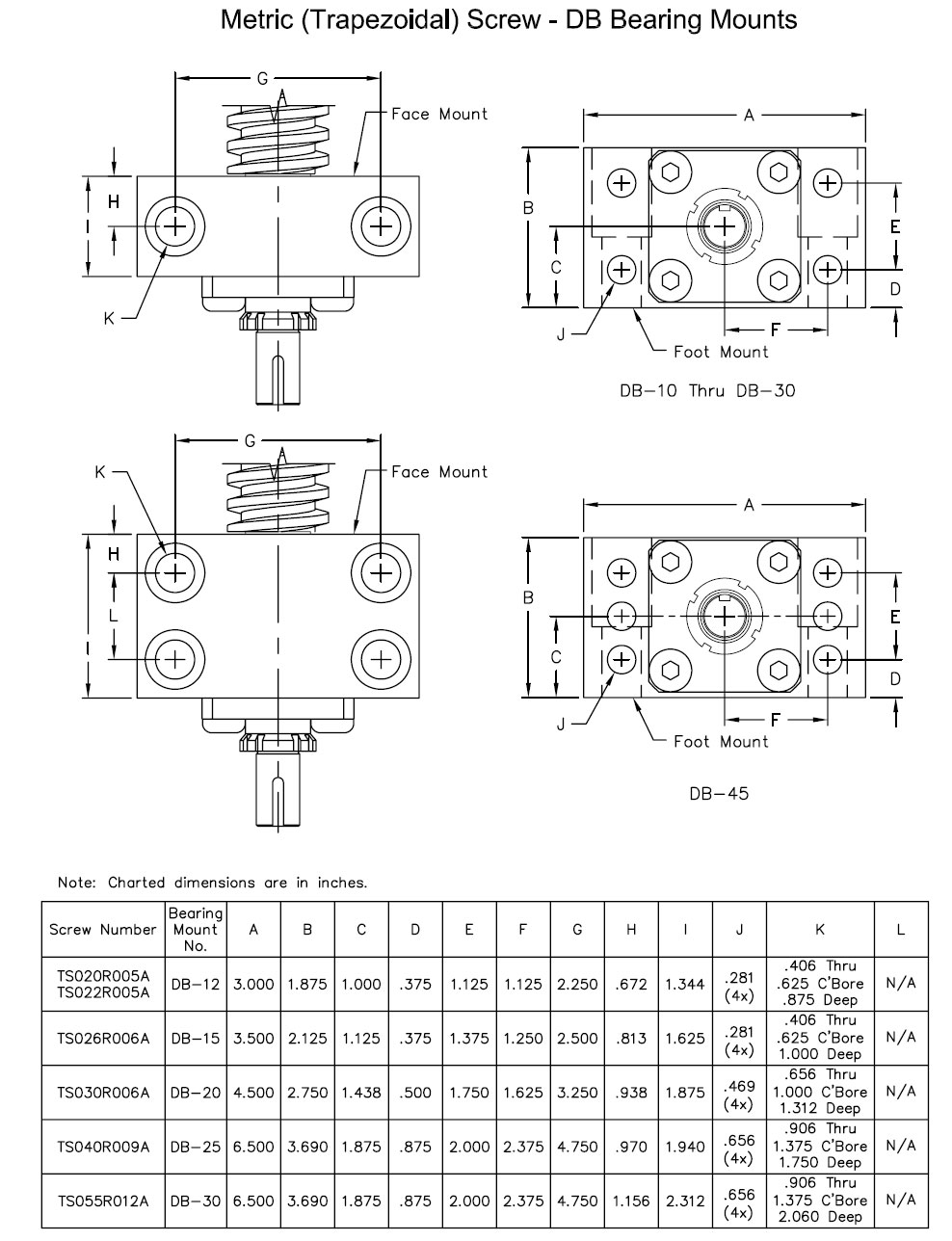

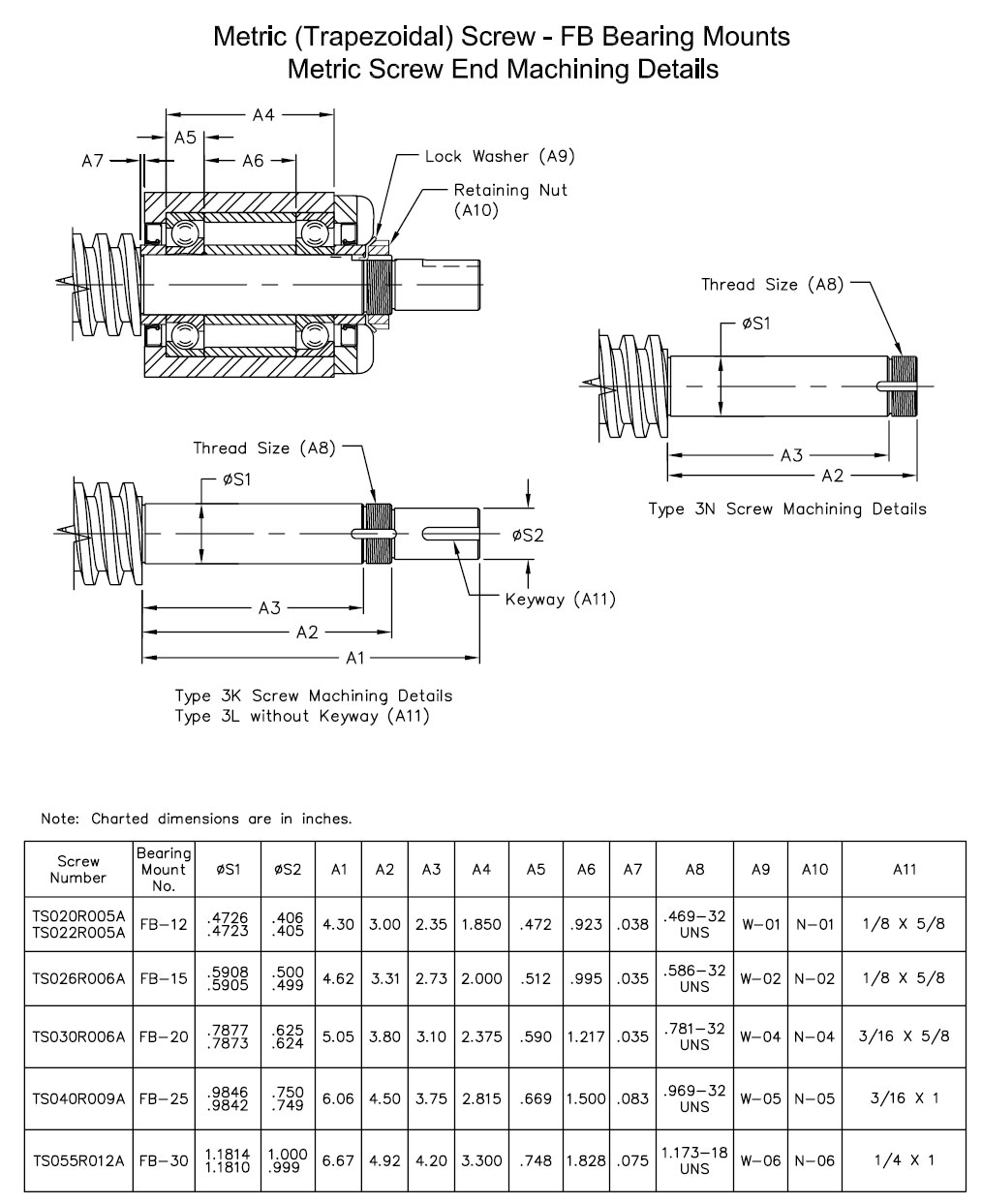

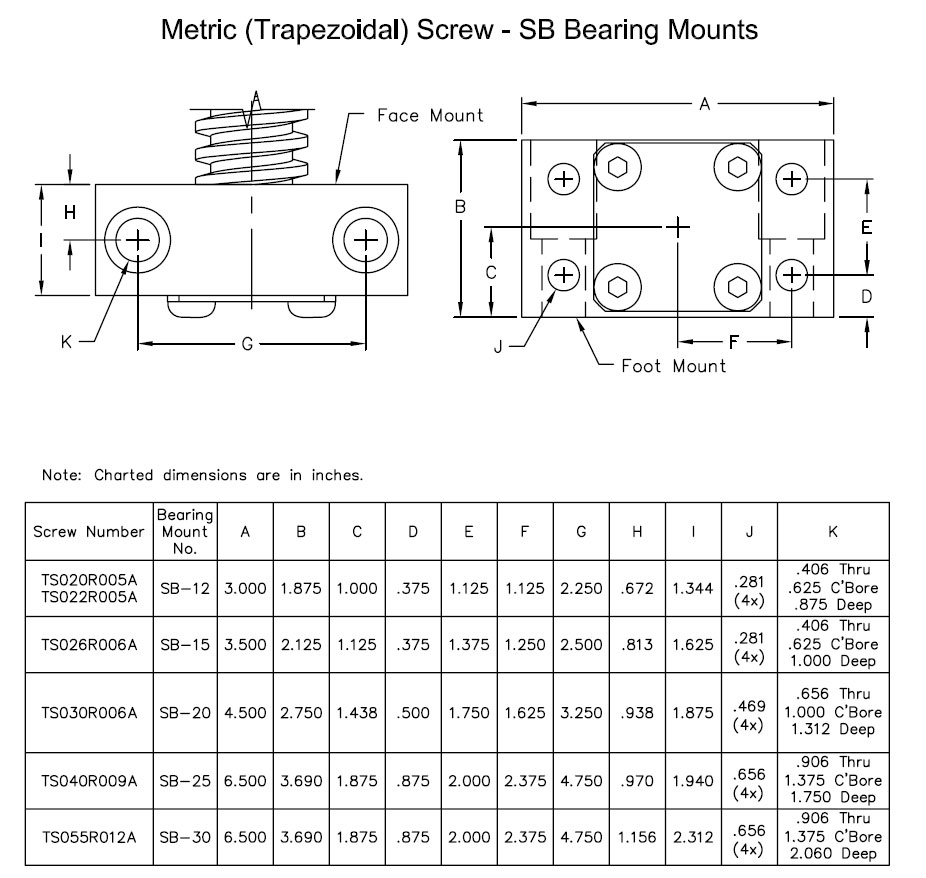

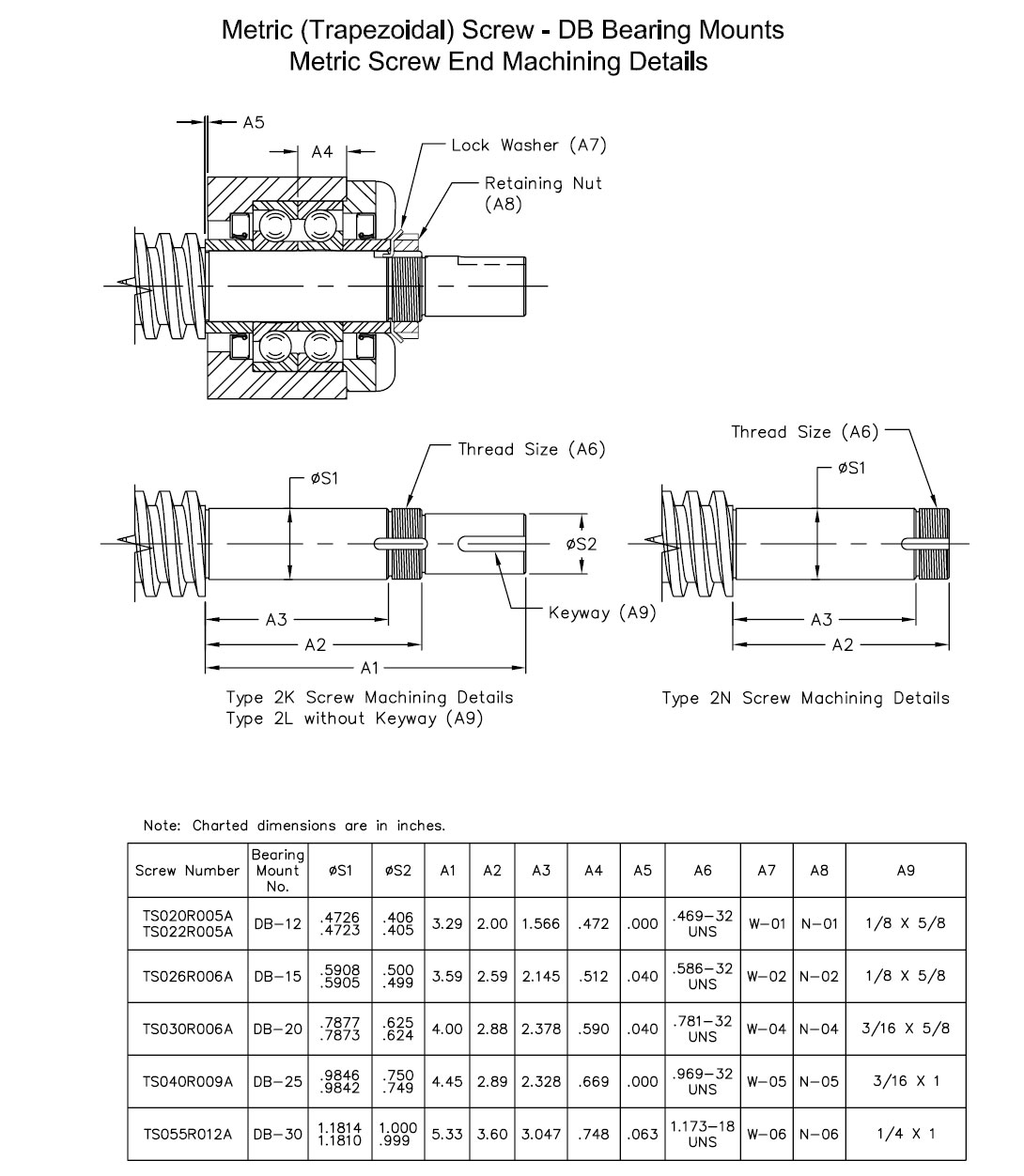

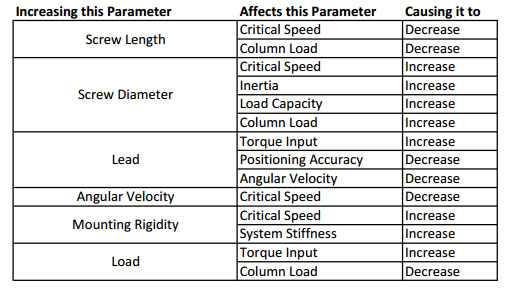

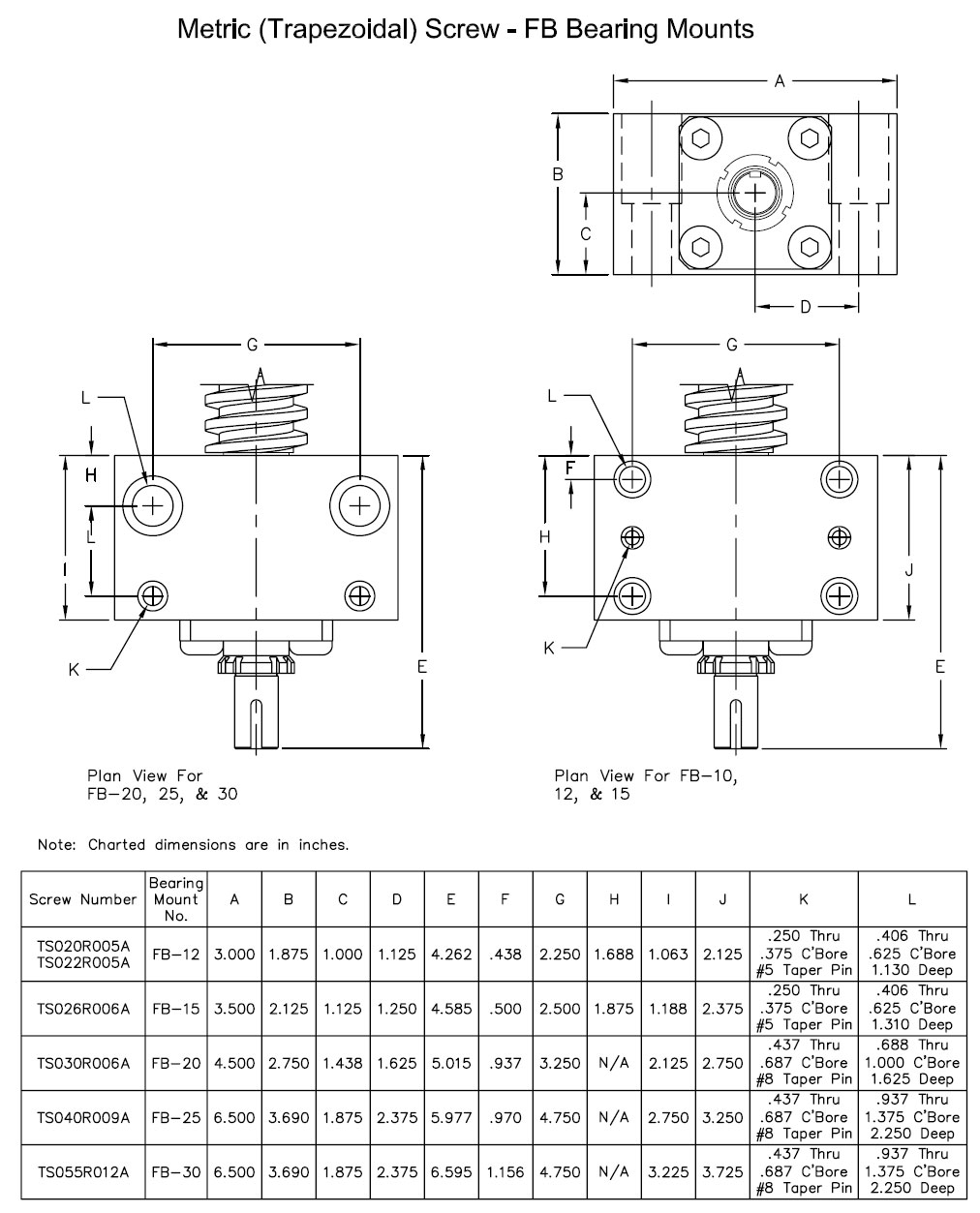

METRIC (TRAPEZOIDAL) SCREWS AND NUTS PERFORMANCE GMetric Screws and Nuts ChartSB Bearing Blocks and Screw End ConditionsDB Bearing Blocks and Screw End ConditionsFB Bearing Blocks and Screw End ConditionsEffect of Change in Parameters
