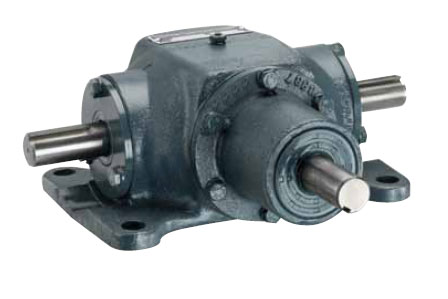

MITER GEAR BOXES

Accessories For Miter Gear Boxes

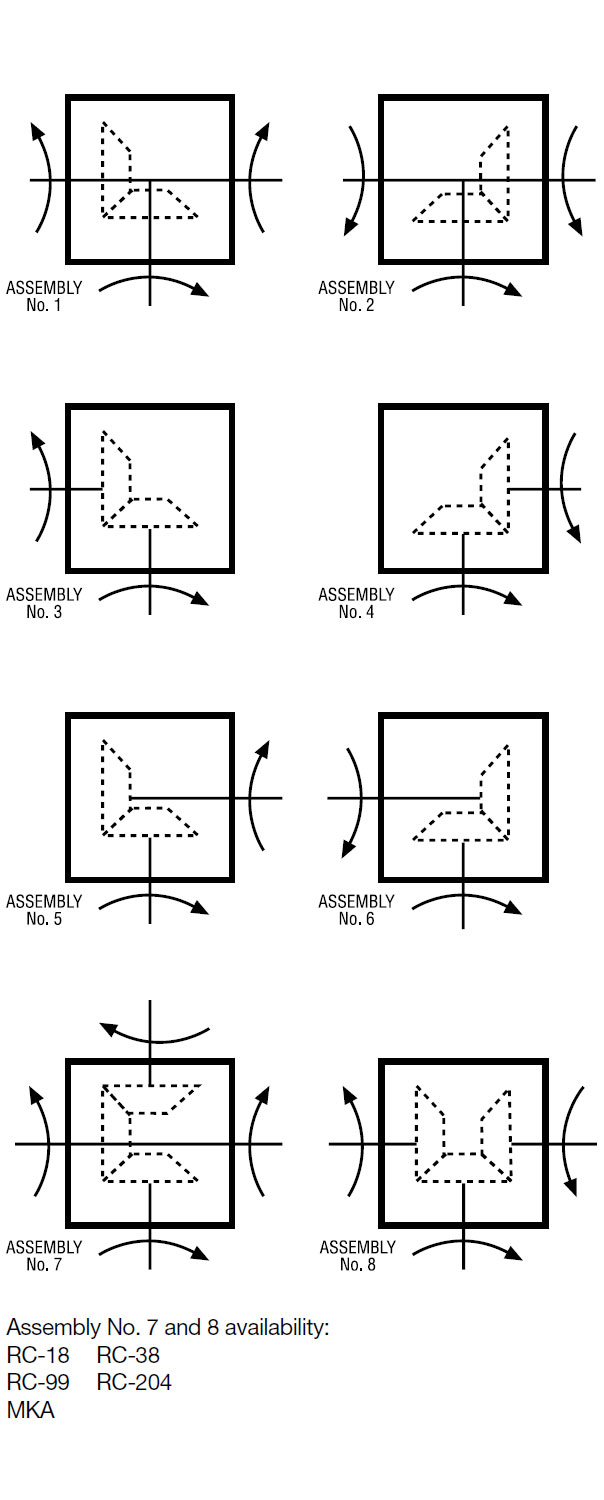

Miter gear boxes are specifically engineered for use with jacks and actuators in multiple jacks systems. Miter gear boxes used in such systems effectively raise unevenly distributed loads. When driven shaft turns per inch of travel are the same, total synchronization is assured because all models have a uniform lifting speed. Arrows in assembly drawings below indicate shaft rotation. All standard miter gear boxes are 1:1 ratio, other ratios are available in the RC series units. Four-shaft units are also available in the RC-18 through RC-204 and the MK series.

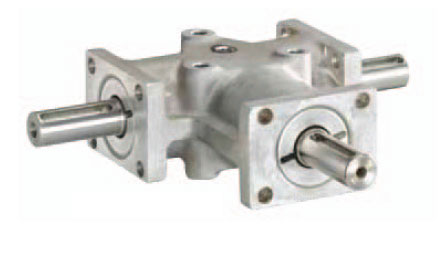

RC-6,RC-9 and RC-12

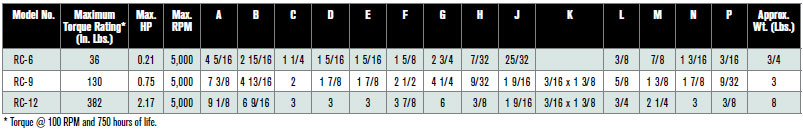

RC-6 THROUGH RC-12

Lubrication

Units are lifetime lubricated.

RC-6 shafts feature flats (shown below).

RC-9 and RC-12 model have key ways

RC-15 through RC-204

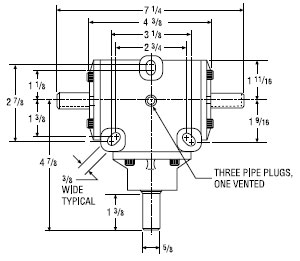

RC-15

Fill with 6 ounces. EP-90 gear oil for normal

operation. Units are shipped less lubricant.

Dimensions are representative

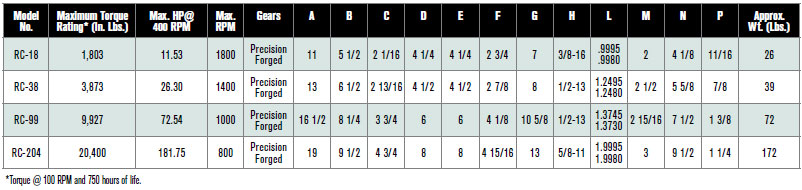

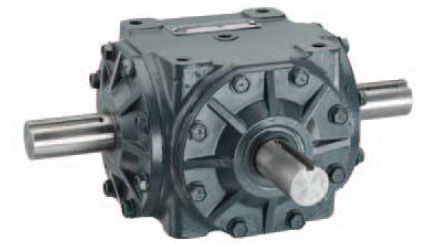

RC-18 THROUGH RC-204

Units shipped less lubricant.

Fill with EP-90 gear oil

Model RC-18 1 pint

Model RC-38 1 1/2 pints

Model RC-99 4 1/2 pints

Model RC-204 8 pints

Dimensions are representative

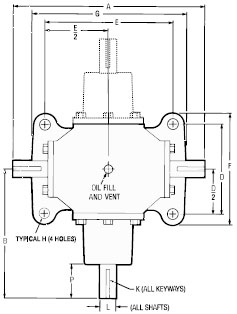

MK Series

MK SERIES

Units shipped less lubricant.

Fill with EP-90 gear oil.

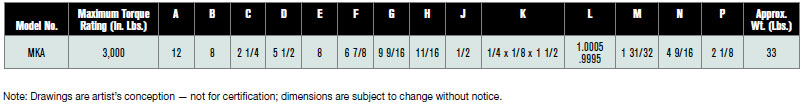

Model MKA    1 1/4 pints

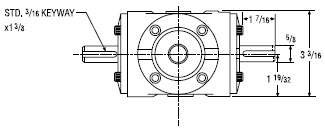

RC-6 THROUGH RC-12

Units are lifetime lubricated.

RC-6 shafts feature flats (shown below).

RC-9 and RC-12 models have keyways

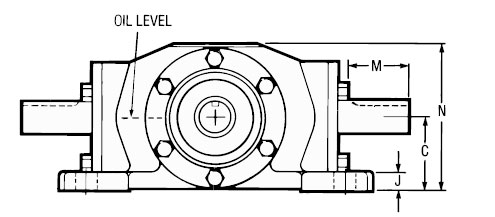

RC-15

Lubrication

Fill with 6 ounces. EP-90 gear oil for normal

operation. Units are shipped less lubricant.

Dimensions are representative

of 1:1 ratio miter boxes

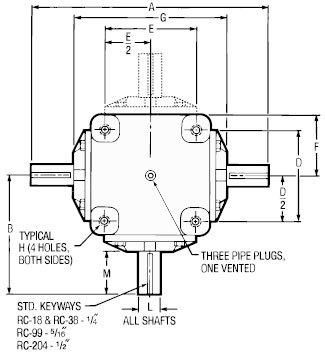

RC-18 THROUGH RC-204

Lubrication

Units shipped less lubricant.

Fill with EP-90 gear oil

Model RC-18 1 pint

Model RC-38 1 1/2 pints

Model RC-99 4 1/2 pints

Model RC-204 8 pints

Dimensions are representative

of 1:1 ratio miter boxes

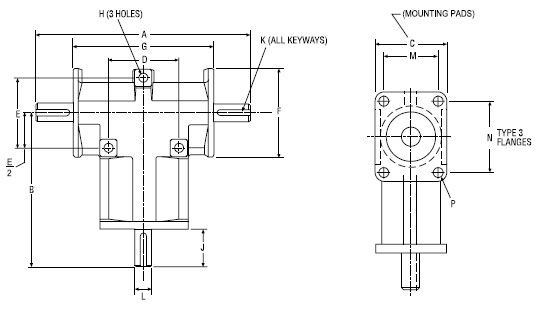

MK Series

Lubrication

Units shipped less lubricant.

Fill with EP-90 gear oil.

Model  MKA      1 1/4 pints
