Controls For Motor Starters

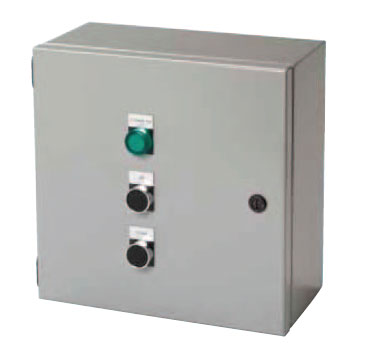

Motor starters are the heart of a basic control system for a motorized jack, actuator, electric cylinder, or ComDRIVE system. Motor starters include extend and retract push buttons for momentary operation, an illuminated power-on light lets operators easily determine if there is power to the system.
Other standard features:
-
Limit switch terminals for two end-of-travel limits
-
1/3 - 15 HP motors standard
-
200, 230, 460, and 575 volts standard, three-phase power requirements
-
NEMA 4 enclosure
-
All three-phase motor starters include IEC motor overload protection
Many options are available including:
-
NEMA 4X enclosure
-
50 Hz motors
-
International voltages
-
Single-phase motors
-
Multiple starters in a single enclosure
-
Starters for larger horsepower motors
-
Explosion-proof enclosure
-
Maintained contact control
-
Stack lights
-
Audible alarm
Ordering information:
Each model’s part number begins with the prefix 07990377.
To this prefix, add the appropriate suffix from the chart below.
For example: 07990377-17 refers to a motor starter for a 1 1/2
horsepower, 200 volt motor.

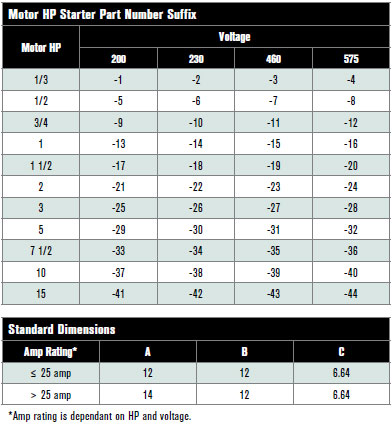

Motor HP starter Part Number Suffix
Many options are available including: NEMA 4X enclosure
50 Hz motors
International voltages
Single-phase motors
Multiple starters in a single enclosure
Starters for larger horsepower motors
Explosion-proof enclosure
Maintained contact control
Stack lights
