PRODUCT DETAILS
Multipurpose Actuators (12VDC)
Multipurpose Actuators are compact, versatile and designed to lift dynamic loads ranging from 500N (112 pounds) to 7000N (1574 pounds) and at travel speeds up to 47 mm/sec (111 in/min). Each 120 VAC or 12 VDC linear actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications. A selection of AC and DC models is available to meet your specific requirements.
Product Code
001S000346
Company Name
Joyce Dayton Corp
Country of Manufacture
Taiwan(R.O.C)
General Information

Please click on Product Spec and identify the correct Actuators. You may send your Business Enquiry.


Return Policy
Multipurpose Actuators (12 VDC) Total SKUs (4)
Capacity N (lb)Travel Speed mm/sec (in/min)Stroke mm (in)Retracted (A) mm (in)Price
Capacity N (lb)Travel Speed mm/sec (in/min)Stroke mm (in)Retracted (A) mm (in)Price
500 (112)13 (31)100 (3.9)246 (9.7)
SKU
Each (USD $)
MA051381110
Call
500 (112)13 (31)150 (5.9)297 (11.7)
MA051381115
Call
500 (112)13 (31)250 (9.8)399 (15.7)
MA051381125
Call
500 (112)13 (31)300 (11.8)450 (17.7)
MA0513B1130
Call

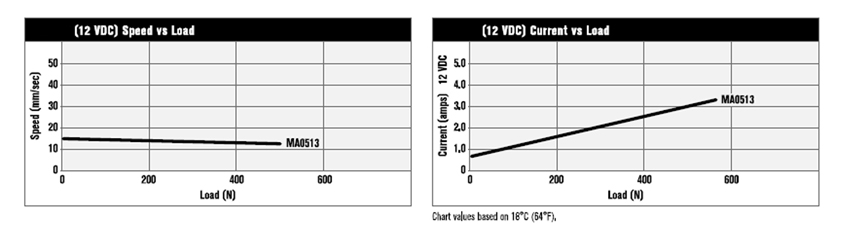

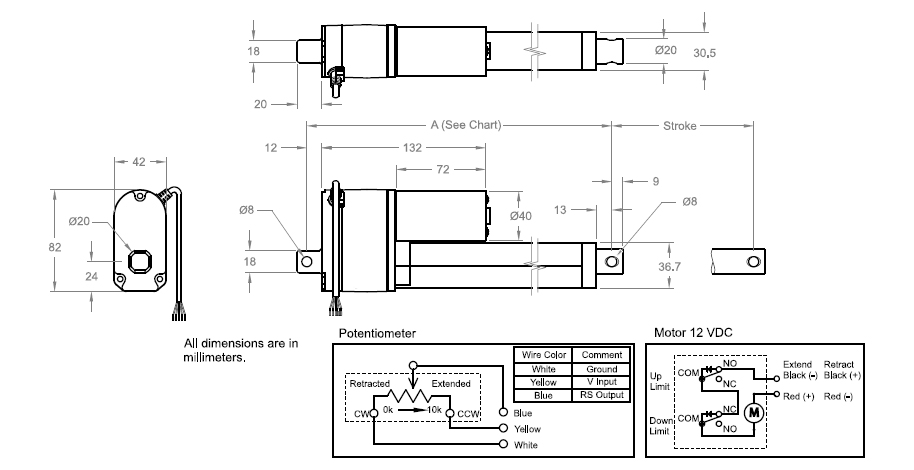

Product DescriptionDIAGRAMMATIC EXPLANATIONPERFORMANCE GRAPHWork Sheet

Each Multipurpose Actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor applications.


Features and Benefits:

  • 12 VDC
  • Dynamic loads up to 500N (112 lb)
  • Static load capacity of 2000N (450 lb)
  • Maximum travel speed of 13 mm/sec (31 in/min)
  • 25% duty cycle
  • Clevis-to-clevis mounting
  • Self-locking
  • Preset limit switches (non-adjustable)
  • Potentiometer
  • IP65 protection rating
  • Aluminium extension tube and outer tube
  • Optional DC control
