Multipurpose Actuators (120 VAC - 337 to 787 lbs)
Multipurpose actuators are compact, versatile and designed to lift dynamic loads ranging from 500N (112 pounds) to 7000N (1574 pounds) and at travel speeds up to 47 mm/sec (111 in/min). Each 120 VAC or 12 VDC linear actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications. A selection of AC and DC models is available to meet your specific requirements.
Joyce Dayton Corp
Country of Manufacture
Please click on Product Spec and identify the correct Actuators. You may send your Business Enquiry.

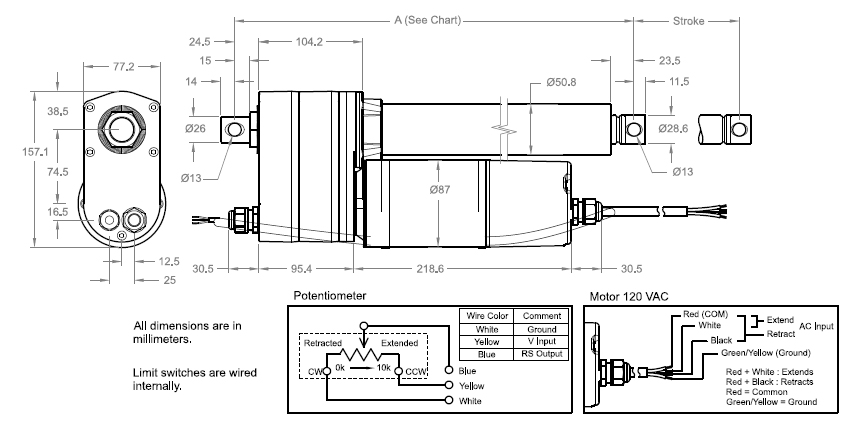

Product DescriptionDiagrammatic ExplanationPerformance GraphWork Sheet
Each Multipurpose Actuator is equipped with a potentiometer and preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor applications.
Features and Benefits:
Dynamic loads up to 3500N (787lb)
Static load capacity of 4500N (1012 lb)

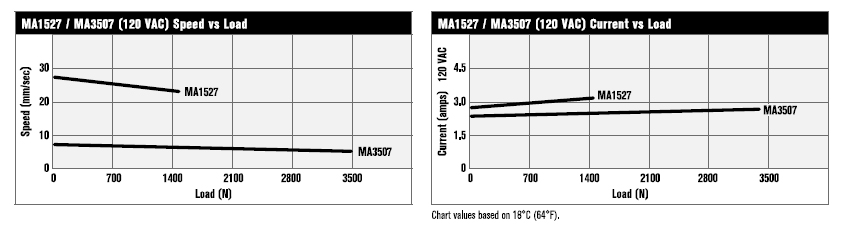

Maximum travel speeds (see chart)
25% duty cycle
Preset limit switches can be adjusted
IP65 protection rating
Steel extension tube and outer tube
Optional AC controls
