Accessories Of Shafting
Shafting matches perfectly with jacks and couplings to meet a wide range of system requirements. Shafting is made from cold-finished 1018 steel, with ends machined to ANSI-standard keyways.

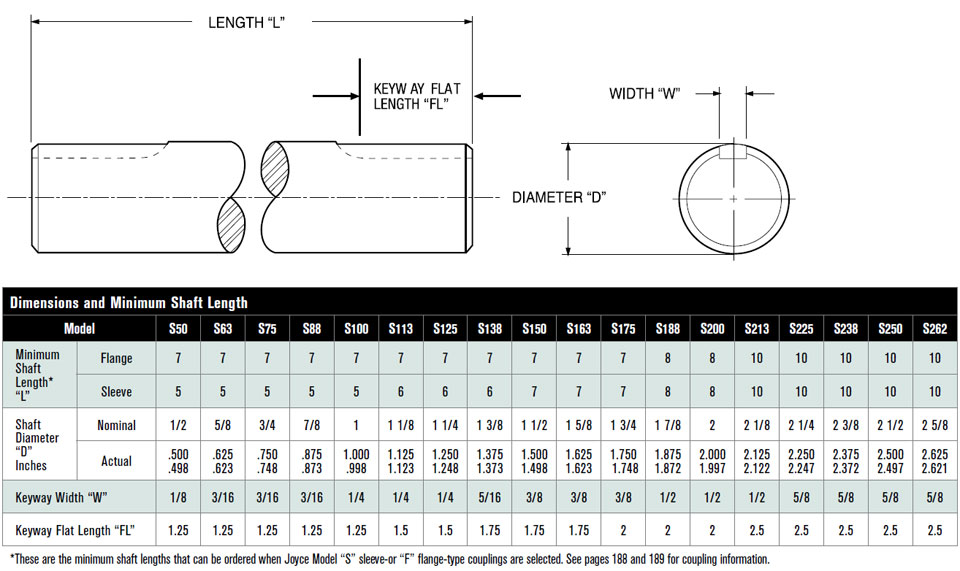

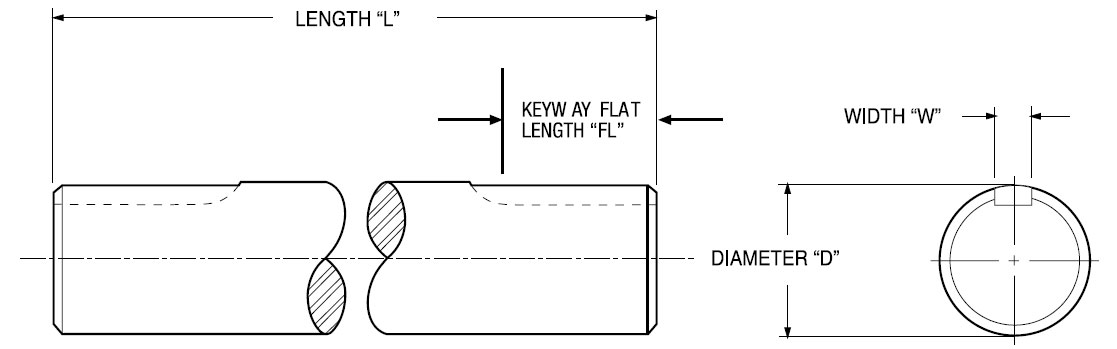

Dimensions and Minimum Shaft Length
.jpg "Shafting Specification")

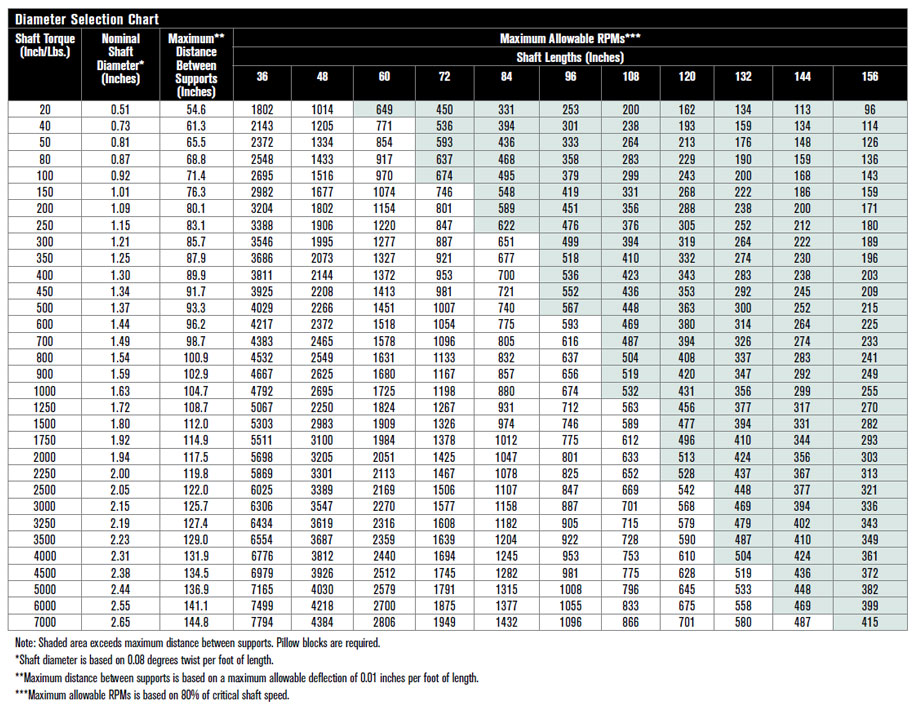

To use this chart, follow these Steps
- Find a "Shaft Torque" value in the far left column that is greater than, or equal to, your calculated torque value.
- Move to the second column to find your "Nominal Shaft Diameter" (round up to arrive at an offered shaft size).
- The third column shows the maximum allowable shaft span before supports (pillow blocks) are required.
- Compare your actual shaft speed (RPM) with the maximum allowable speed (RPM) for the shaft you have chosen.
.jpg)
Length Specifying Information
Our Shafts can be ordered in 1/16 inch increments of length. When specifying shaft length, please refer to the table below to determine the decimal code for fractions of length.
.jpg)
Ordering Information
Ex: A. For a 1/2" dia. x 33 3/8" long Part Number= S50-33.38
B. For a 1 1/4" dia. x 110"long Part Number= S125-110.00
C.For a 2 1/4" dia. x 58 7/16"long Part Number= S225-58.44
