Options – Trunnion Mounting Adapters

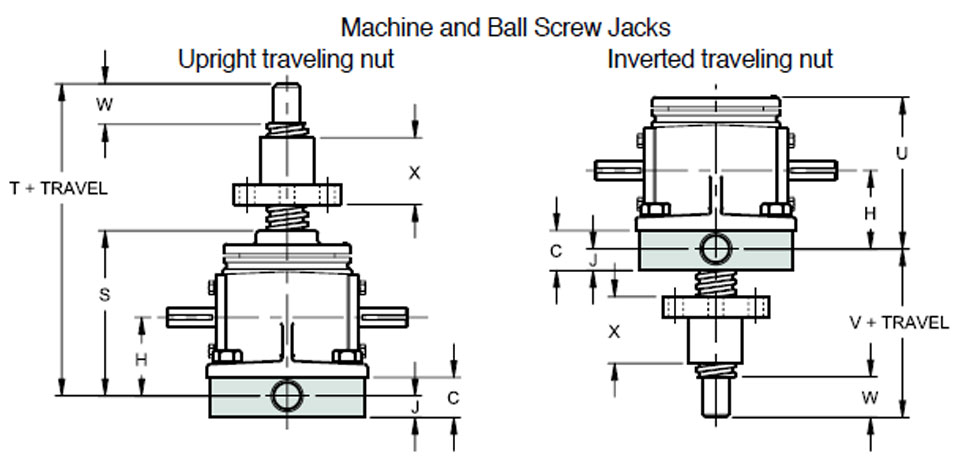

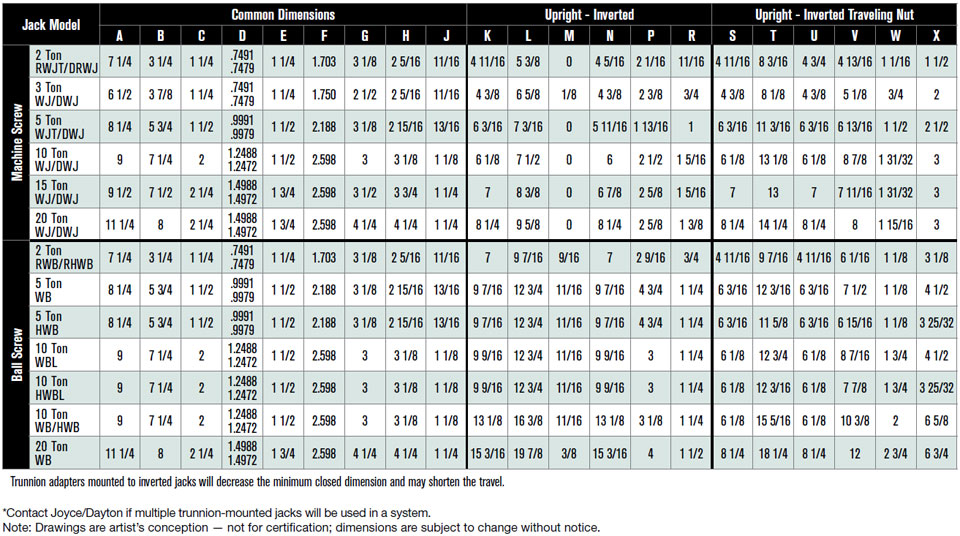

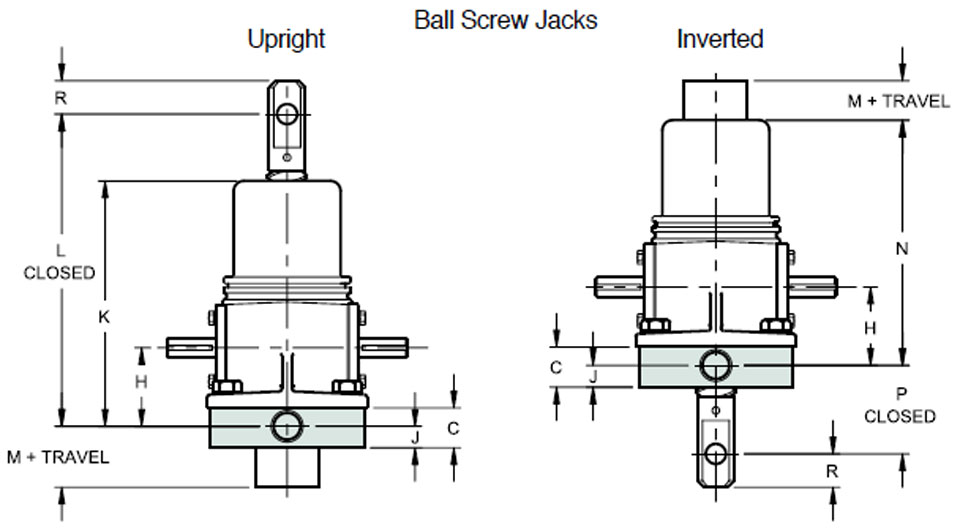

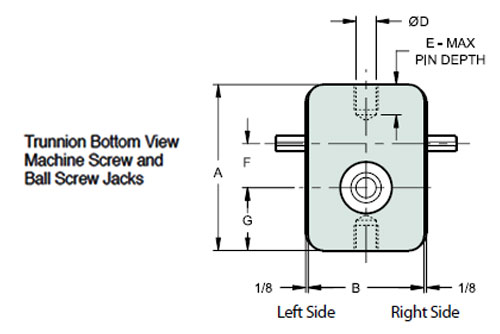

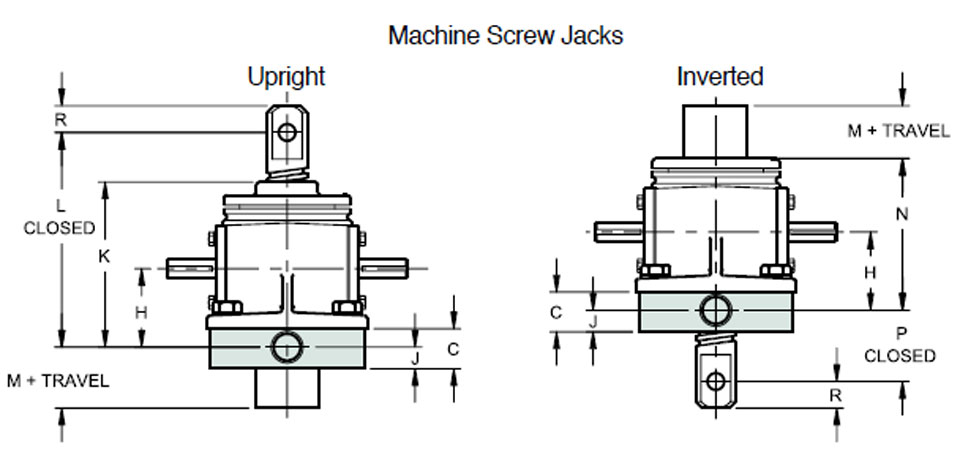

Trunnion Mounting Adapters Trunnion adapter plates bolt to the base of 2-ton through 20-ton jacks. They include precision bores for trunnion pins. These are frequently used in installations where a single jack moves through an arc during operation. This jack is often configured with a motor mount or as a ComDRIVE
Design Information
These pins should be made of steel with hardness greater than 30 HRC, a yield strength greater than 60,000 psi and be supported to within 1/16 inch of the trunnion adapter plate. Therefore the distance between the customer’s mounting surfaces should be no more than “A” + 0.13 inch.
